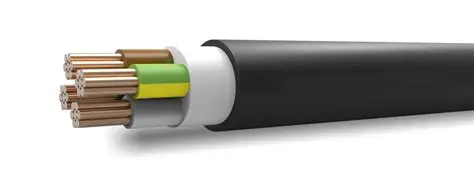

What Is NYY Cable?

NYY cable refers to a standardized European power cable with PVC insulation and PVC sheathing. As one of the most widely used fixed installation cables across Europe and increasingly worldwide, NYY cables deliver reliable power transmission for industrial and commercial applications. The designation “NYY” follows German VDE standards, where “N” indicates it conforms to German cable norms, while the two “Y” letters designate PVC (polyvinyl chloride) insulation and PVC outer sheath respectively.

Technical Specifications and Construction

NYY cables feature a robust construction designed for durability and safety:

Core Construction:

• Conductor: Typically high-purity electrolytic copper (Class 1 solid or Class 2 stranded), available in single and multi-core configurations
• Insulation: Flame-retardant PVC compound colored according to VDE 0293 standards
• Outer Sheath: Black PVC providing excellent mechanical protection and environmental resistance

Electrical Properties:

• Rated Voltage: 0.6/1 kV (600/1000V)
• Test Voltage: 4,000V
• Conductor Size Range: 1.5mm² to 300mm² for various power requirements

Environmental Performance:

• Temperature Range:
  • Fixed installation: -40°C to +70°C
  • Mobile installation: -5°C to +50°C
• Minimum Bending Radius:
  • Single-core: 15 × cable diameter
  • Multi-core: 12 × cable diameter

Key Applications of NYY Cable

NYY cables are engineered for versatility across multiple environments:

• Industrial facilities: Power distribution in manufacturing plants and processing facilities
• Power infrastructure: Connections in power stations and substations
• Commercial buildings: Fixed wiring in offices, shopping centers, and public buildings
• Underground installations: Direct burial applications where mechanical protection is provided
• Concrete installations: Embedding in non-compacted concrete structures
• Indoor and outdoor applications: Weather-resistant performance for exposed installations

Unlike many other cable types, NYY cables excel in challenging environments requiring resistance to oils, chemicals, and physical stress.

Advantages of NYY Cable

1. Durability and Protection The robust PVC sheath provides exceptional mechanical protection against impact, abrasion, and crushing forces. This makes NYY cables particularly suitable for industrial environments where cables face physical challenges.

2. Chemical and Oil Resistance NYY cables maintain performance when exposed to oils, greases, and common industrial chemicals, extending service life in demanding applications.

3. Installation Flexibility These cables can be installed in various configurations:

• In cable ducts and trays
• Direct burial (with appropriate protection)
• Surface mounting
• Embedded in plaster or concrete
• Underground ducts

4. Safety Features NYY cables comply with stringent European safety standards:

• Self-extinguishing properties in accordance with IEC 60332-1
• Halogen-free options available for reduced toxic fume emission
• RoHS compliant manufacturing processes

5. Cost-Effectiveness The balance of performance characteristics and material costs makes NYY cable an economical choice for permanent installations requiring reliability.

NYY Cable Variants

The NYY family includes several specialized variants:

• NYY-J: Includes a yellow/green protective earth (PE) conductor
• NYY-O: Without protective earth conductor
• NYCWY: Features copper braid screening for electromagnetic interference protection
• NYYH: Enhanced version with improved heat resistance properties

Installation Guidelines

For optimal performance and safety compliance, NYY cables should be installed according to these best practices:

1. Maintain minimum bending radii during installation
2. Ensure proper cable support at recommended intervals
3. Provide mechanical protection when installed in exposed locations
4. Follow local electrical codes for ampacity derating in bundled installations
5. Use appropriate glands and sealing accessories for outdoor or wet locations

Comparison with Similar Cable Types

When selecting power cables, it’s helpful to understand how NYY compares to alternatives:

• vs. NYM: NYY has thicker sheathing for direct burial applications, while NYM is typically used for indoor installations
• vs. VVG (Russian standard): Similar construction but follows different certification standards
• vs. XLPE insulated cables: NYY uses PVC insulation which is more economical but has lower temperature rating than XLPE alternatives
