Yslycy Screened Control Cables Yslycy-Jz/-Oz/-Jb
Description

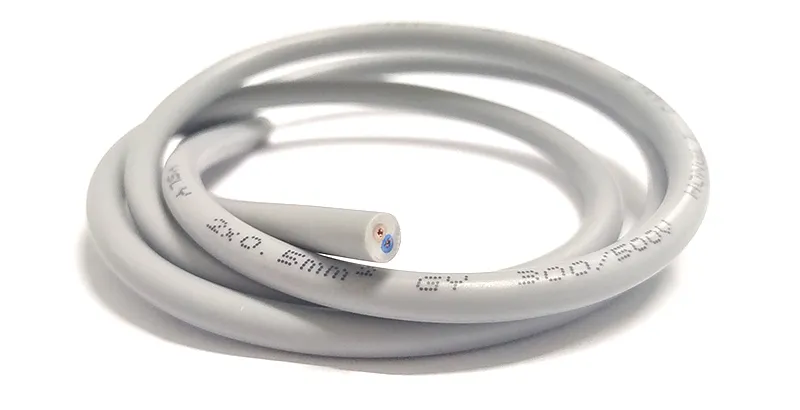

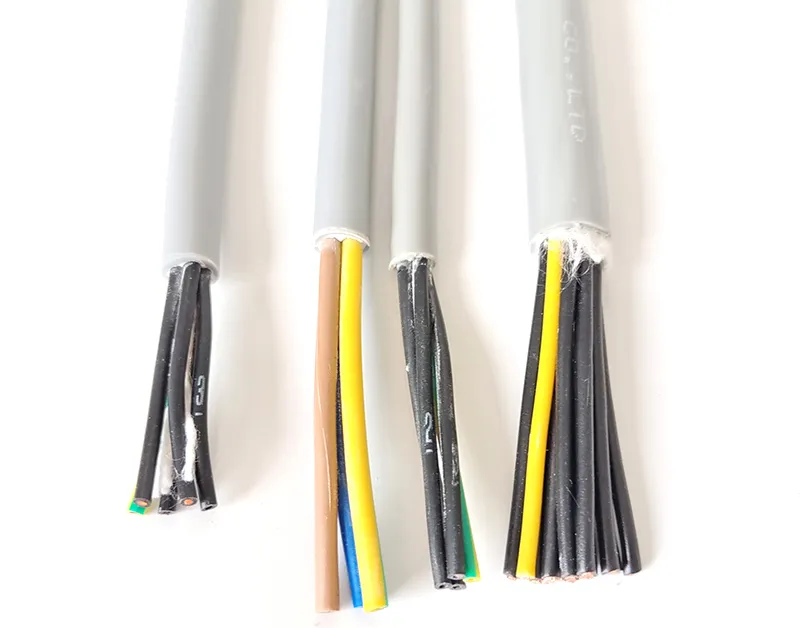

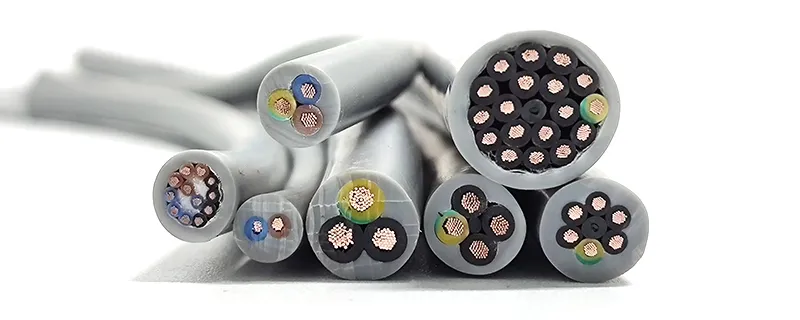

The cable types YSLYCY-JZ/-OZ/-JB are screened machine control cables with fine-wire, PVC inner sheath and different wire labels. They are universally usable, flexible connection and control cables for machine engineering, signal and data transmission and system technology with increased requirements on interference resistance in indoor signal and data transmission (EMC).
| Customs Tariff Number (code number) | 85444995000000000 |
|---|---|
| CPR-classification according to EN 50575 | Eca |
| Conductor material | copper, bare |
| Conductor construction | Class 5 = flexible |
| Insulation | PVC TI2 |
| Material inner sheath | PVC |
| Screen | tinned copper braid |
| Screen coverage | 70 % |
| Sheathing material | PVC YM2 |
| Colour of outer sheath | grey RAL 7001 |
| Flame-retardant | VDE 0482-332-1-2/IEC 60332-1-2 |
| Max. temperature at conductor, °C | 70 °C |
| Permitted outer cable temperature, fixed, °C | -40 – +70 °C |
| Permitted outer cable temperature, moved, °C | 5 – 70 °C |
| Bending radius, fixed installation | 6 x Ø |
| Bending radius, moving application | 20 x Ø |
| Nominal voltage Uo | 300 V |
| Nominal voltage U | 500 V |
| Colour of outer sheath | grey |
| metal base Cu | 150 EUR/100 kg |
| Unit of measurement | metre |
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
