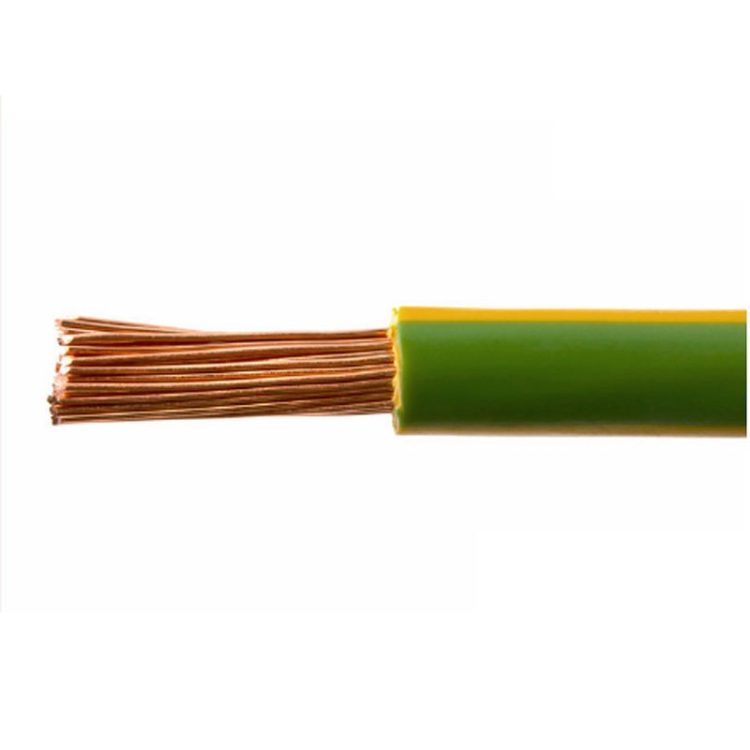

Yellow Green Electric Wire Copper Grounding Earth Cable
Description
1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70°C
3.Color Code: red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
Service Performance Of Copper Wire
1. Rated voltage: 300/300V ; 300/500V ;450/750V
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter > 25mm.
European Standard Electric Wire
H07V-U , 450/750 PVC Insulated Building Wire, BS Standard
H03VH-H , 300/300V PVC Insulated Flexible Parallel Wire
H03VVH2-F , H05VVH2-F , PVC insulated PVC sheathed flat wire
300/300V PVC Insulated Flexible Twisted Cord
H05V-K , H07V-K , PVC Insulated Flexible Wire
H07Z-U , 450/750 LSHF Compound Insulated Building Wire.BS Standard
H05Z-K , H07Z-K , LSHF Compound Insulated Flexible WirefBS Standard
Flat Twin and Earth Wire-ECC Cables, BS Standard
| Model | Name | Usage |
|---|---|---|
| BV(BLV) | copper (AL) core PVC insulated cable (wire) | Suitable for all kinds of AC and DC electrical installations, electrical instruments, instruments, telecommunications equipment, power and lighting lines for fixed laying |
| BVR | copper core PVC insulated flexible cable (wire) | |
| BVV(BLVV) | copper (AL) core PVC insulated PVC sheathed round cable (wire) | |
| BVVB(BLVVB) | copper (AL) core PVC insulated PVC sheathed flat cable (wire) | |
| BV-105 | copper core heat-resistant 105 degree PVC insulated wire | |
| BV-ZR | copper core flame retardant PVC insulated wire | / |
| BVR-ZR | copper core flame retardant PVC insulated flexible wire | / |
| BVV-ZR-105 | copper core flame retardant PVC insulated PVC sheathed round cable | / |
| BVVB-ZR | copper core flame retardant PVC insulated PVC sheathed flat cable | / |
| BV-ZR-105 | copper core heat resistant 105 ℃ flame retardant PVC insulated wire | / |
| BVR-ZR-105 | copper core heat-resistant 105 ℃ flame-retardant vinyl chloride insulated PVC sheathed round flexible cable | / |
| BVV-ZR-105 | copper core heat-resistant 105 ℃ flame-retardant PVC sheathed round cable | / |
| AV-ZR-105 | copper core heat-resistant 105 ℃ flame retardant PVC insulated installation wire | / |
| AVR-ZR-105 | copper core heat-resistant 105 ℃ flame retardant PVC insulated installation flexible wire | Cords for internal use in instruments, meters, etc. |
| AV-ZR | copper core flame retardant PVC insulated installation (flexible) wire | hard-wired for electrical, instrumentation, electronic equipment, etc. |
| RV | Copper core PVC insulated flexible wire | Suitable for connection of various AC and DC electrical appliances, electrical instruments, household appliances, small power tools, power and lighting devices |
| RVB (RVVB) | copper core PVC insulated flat connection flexible wire | |
| RVS | copper core PVC insulated twisted connection flexible wire | |
| Rv-105 | copper core heat-resistant 105 degree PVC insulated connection flexible wire | |
| RVV | copper core PVC insulated PVC sheathed flat connection flexible cable (wire) | Household appliances, small electric tools, instruments and power lighting |
| RVVP | Copper core PVC insulated and shielded PVC sheathed flexible cable, voltage 300V / 300V, 2-24 core, | instrument, instrument, intercom, monitoring, control installation |
| AVVR | PVC Sheath | Installation flexible cable |
Part Production Range of Insulated Electrical Wire
| Model | Voltage level(v) | Cross-sectional area (mm2) | Number / diameter (mm) | Outer diameter (mm) | weight (kg/km) | 20 ℃ conductor resistance≤ (Ω / km) |
|---|---|---|---|---|---|---|
| BV | 300/ 500V | 0.5 | 1/0. 80 | 2.4 | 8.5 | 36 |
| BV | 300/ 500V | 0.75 (A) | 1/0.97 | 2.6 | 11.1 | 24.5 |
| BV | 300/ 500V | 0.75(B) | 7/0.37 | 2.8 | 12 | 24. 5 |
| BV | 300/ 500T | 1.0(A) | 1/1.13 | 2.8 | 13.9 | 18.1 |
| BV | 300/ 500V | 1.0(B) | 7/0.43 | 3 | 15 | 18.1 |
| BV | 450/ 750V | 1.5(A) | 1/1.38 | 3.3 | 20. 3 | 12. 1 |
| BV | 450/ 750V | 1.5(B) | 7/0. 52 | 3.5 | 21.6 | 12.1 |
| BV | 450/ 750V | 2.5 (A) | 1/1.78 | 3.9 | 31.6 | 7.41 |
| BV | 450/750V | 2.5(B) | 7/0. 68 | 4.2 | 34. 8 | 7.41 |
| BV | 450/ 750V | 4(A) | 1/2.25 | 4.4 | 47.1 | 4.61 |
| BV | 450/ 750T | 4(B) | 7/0.85 | 4.8 | 50. 3 | 4.61 |
| BV | 450/ 750V | 6(A) | 1/2.76 | 4.9 | 67.1 | 3.08 |
| BV | 450/ 750T | 6(B) | 7/1. 04. | 5.4 | 71.2 | 3.08 |
| BV | 450/ 750V | 10 | 7/1.35 | 7 | 119 | 1.83 |
| BV | 450/ 750V | 16 | 7/1.70 | 8 | 179 | 1.15 |
| BV | 450/ 750V | 25 | 7/2. 14 | 10 | 281 | 0.727 |
| BV | 450/750V | 35 | 7/2. 52 | 11.5 | 381 | 0.524 |
| BV | 450/ 750V | 50 | 19/1.78 | 13. 0 | 521 | 0.387 |
| BV | 450/ 750V | 70 | 19/2. 14 | 15 | 734 | 0.268 |
| BV | 450/ 750V | 95 | 19/2.52 | 17.5 | 962 | 0.193 |
| BV | 450/ 750V | 120 | 37/2. 03 | 19 | 1180 | 0.153 |
| BV | 450/ 750V | 150 | 37/2.25 | 21 | 1470 | 0.124 |
| BV | 450/ 750V | 185 | 37/2. 52 | 23.5 | 1810 | 0.0991 |
| BVR | 450/750V | 2.5 | 19/0.41 | 4.2 | 34.7 | 7.41 |
| BVR | 450/ 750V | 4 | 19/0. 52 | 4.8 | 51.4 | 4.61 |
| BVR | 450/750V | 6 | 19/0.64 | 5.6 | 73.6 | 3.08 |
| BVR | 450/ 750V | 10 | 49/0.52 | 7.6 | 129 | 1.83 |
| BVR | 450/ 750V | 16 | 49/0.64 | 8.8 | 186 | 1.15 |
| EVR | 450/ 750V | 25 | 98/0. 58 | 11 | 306 | 0.727 |
| BVR | 450/ 750V | 35 | 133/0. 8 | 12.5 | 403 | 0.524 |
| BVR | 450/ 750V | 50 | 133/0. 68 | 14.5 | 553 | 0.387 |
| BVR | 450/ 750V | 70 | 189/0.68 | 16.5 | 764 | 0.268 |
| Nominal sectional area mm2 | Conductor No/Dia. Mm | Nominal Insulated thick mm | Max overall Dia. Mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||
|---|---|---|---|---|---|---|---|---|
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | – | 0.011 | 19.2 | – |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | – | 0.01 | 20.6 | – |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 |
| 10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 |
| 16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 |
| 25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 |
| 50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 |
| 70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 |
| 120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 |
| 150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 |
| 185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 |
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
