Description

APPLICATIONS
THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.

When used as type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90°C.
When used as type THWN, conductor is suitable for use at temperatures not to exceed 90°C, dry locations or 75°C wet locations or not to exceed 75°C when exposed to oil or coolant.
When used as type THWN-2, conductor is suitable for use in wet and dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant.
Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material. Voltage rating for all applications is 600 volts.

SPECIFICATIONS
THHN or THWN-2 comply with:
ASTM – B3, B8 (7,19, 37, 61 Strands), B 787 (19 Wire Combination Unilay Strand)
Technical Compliances
– UL 83 – Thermoplastic-Insulated Wires and Cables
– CSA C22.2 No. 75-03
– UL 1063 (MTW) – Machine-Tool Wires and Cables (stranded cables only)
– UL 758 (AWM)
– ICEA S-95-658/NEMA WC 70

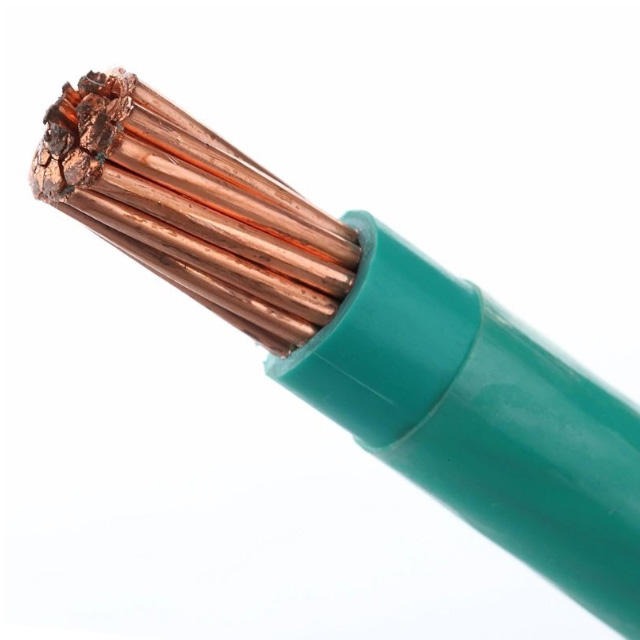

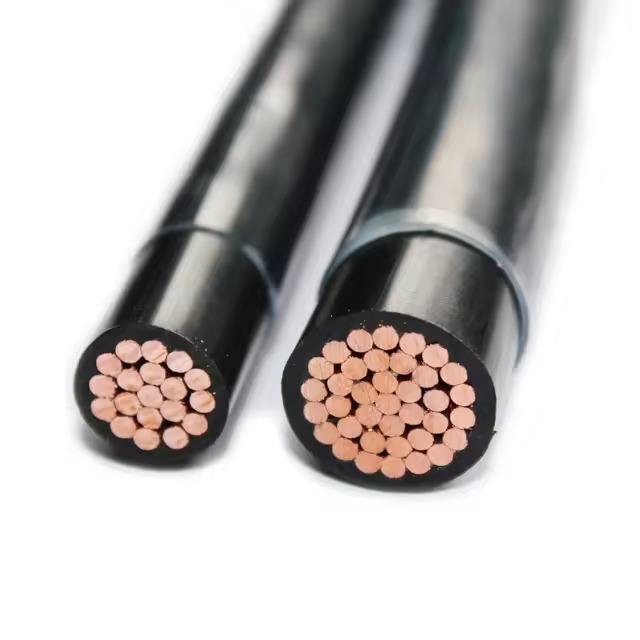

Cable Construction
Conductor:
Soft annealed bare copper, Class B
stranding per ASTM B8
Insulation:
Tough, heat and moisture resistant Polyvinyl chloride (PVC) insulation over which a nylon jacket is applied.
Color: option

Data sheet

MM2	AWG/kcmil		Diameter of conductor	Min.No of wire	Insulation Thickness	JACKET THICKNESS	Diam.	Approx. Wt.	NEC
–	–	–	mm	n	mm	mm	mm	Kg/km	Ampacity
2.08	14	AWG	1.85	7	0.38	0.1	2.8	25	20
3.31	12	AWG	2.32	7	0.38	0.1	3.3	37	25
5.26	10	AWG	2.95	7	0.51	0.1	4.2	59	35
8.37	8	AWG	3.71	7	0.76	0.13	5.5	96	50
13.3	6	AWG	4.67	7	0.76	0.13	6.5	145	65
21.2	4	AWG	5.89	7	1.02	0.15	8.2	232	85
26.7	3	AWG	6.60	7	1.02	0.15	8.9	285	100
33.6	2	AWG	7.42	7	1.02	0.15	9.8	352	115
42.4	1	AWG	8.43	19	1.27	0.18	11.3	452	130
53.5	1/0	AWG	9.45	19	1.27	0.18	12.4	559	150
67.4	2/0	AWG	10.62	19	1.27	0.18	13.5	692	175
85	3/0	AWG	11.94	19	1.27	0.18	14.8	860	200
107	4/0	AWG	13.41	19	1.27	0.18	16.3	1068	230
127	250	kcmil	14.60	37	1.52	0.2	18.0	1279	255
152	300	kcmil	16.00	37	1.52	0.2	19.4	1516	285
177	350	kcmil	17.30	37	1.52	0.2	20.7	1751	310
203	400	kcmil	18.49	37	1.52	0.2	21.9	1995	335
228	450	kcmil	19.61	37	1.52	0.2	23.1	2229	380
253	500	kcmil	20.65	37	1.52	0.2	24.1	2463	420

——Our Feature——

1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
