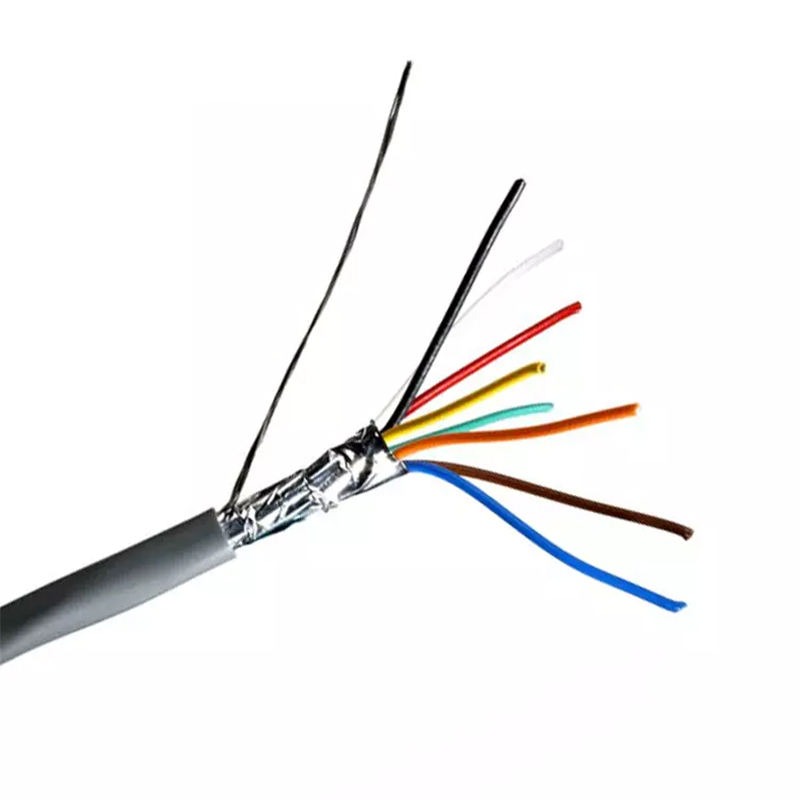

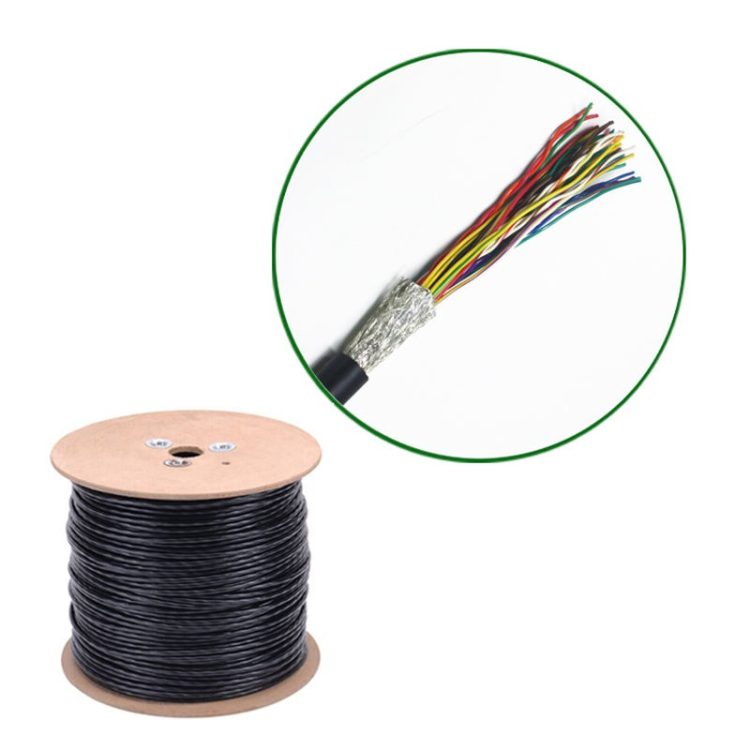

Description

Technical data：
1. Conductor: Stranded bare copper or tinned copper
2. Insulator: PVC
3. shielding rate:85%
4. Rated voltage: 300v
5. Rated temperature: 80°C
6. Color: red, black, white, blue, brown, yellow, green and pink

Features:
1.Characteristics : Anti – acid & alkali, oil – resistant, moisture-proof, anti – mildew, etc. Easy to peel and cut.
2.Flammability Test : pass the UL VW – 1 and CSA FT1 vertical flame test
3.Over Diameter tolerance: ±0.1mm

Application:
Suitable for electronic equipment matching wiring, inside and outside of machine (such as office computer system, recorder, X machines etc.)
Can be used as a measurement, detection and control cable.Used in machine tool manufacturing, equipment installation, power plant, heating and air-conditioning systems, refrigeration equipment, office automation equipment and data processing system.
Good heat resistance, cold resistance and flame retardant. Able to bear external mechanical forces and certain wear resistance.

UL1015 CSA T1(TR-64) (Stranded) UL Style & CSA Type	Conductor	Insulation Thickness	Overall Diameter	Stand Put-up	Conductor Resistance at 20℃
线号	线数/线径	公制
AWG	NO/mm	mm	mm	M/coil	Ω/km
28	7/0.127	0.79	2.0±0.10	610
26	7/0.160	0.79	2.10±0.10	610	139.00
24	11/0.160	0.79	2.20±0.10	610	88.70
22	17/0.160	0.79	2.40±0.10	610	57.40
20	21/0.178	0.79	2.50±0.10	610	37.10
18	34/0.178	0.79	2.80±0.10	610	23.70
16	26/0.254	0.79	3.10±0.10	610	14.20
14	41/0.254	0.79	3.50±0.10	610	9.63
12	65/0.254	0.79	4.0±0.10	610	6.06
10	105/0.254	0.79	4.60±0.10	610	3.80

——Our Feature——

1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
