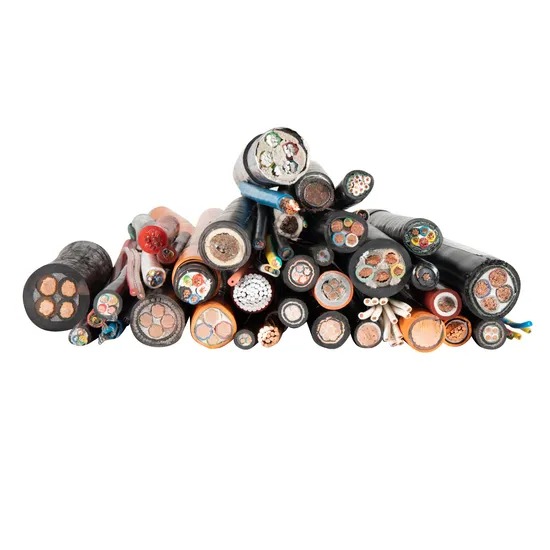

Ttu Cable 600V 8AWG 6AWG Cu/PE/PVC Ttu Cable - Image 2

Ttu Cable 600V 8AWG 6AWG Cu/PE/PVC Ttu Cable

  • Reply Quickly

  • 7 Days Fast Delivery

  • High Praise Rate

  • Zero Complaints & incidents

Custom H03Z1Z1-F / H05Z1Z1-F LSZH Flexible Cable Manufacturer

View Cart
Details

Wholesale H03VVH2-F Flat Flexible PVC Power Cable

,
View Cart
Details

Custom H03VV-F 300/300 V CU/PVC/PVC Cable Supplier

,
View Cart
Details

China H03V2V2-F / H03V2V2H2-F Industrial Cable Manufacturer

View Cart
Details

China H03RN-F Rubber Coated Cable Manufacturer

View Cart
Details

TTU 600V cable CU/PE/PVC
1.CU/PE/PVC
2.standard:ASTM BS IEC
3.reliable qualtiy&fast delievery

TTU 600V Cable

1. Applications
The copper conductors type TTU-600V are used for power and lighting circuits in industrial and commercial facilities, they are specially suitable for outdoor installations or directly buried, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, its maximum temperature of operation is 75 ºC and its voltage of service for all the applications it is 600 V.

2. Construction
The conductors type TTU-600V are stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Polyethylene (PE) thermoplastic material resistant to the moisture and the heat, over which is applied a protector coating of Chloride of Polyvinyl (PVC). They are always supplied in black color and with different packaging.

3.TTU 600V data sheet

SIZE
AWG O
MCM		 CROSS SECTION
AL
mm2		 STRANDING
Number of wire x diameter
mm.		 INSULATION THICKNESS
mm.		 JACKET THICKNESS
mm.		 EXTERNAL DIAMETER
mm.		 TOTAL WEIGHT
Kg/Km		 AMPACITY
for 1 conductor in free air
Amp.		 AMPACITY
for 3 conductors in conduit
Amp.
8 8,37 7 x 1,23 1,14 0,38 6,73 109,0 70 50
6 13,30 7 x 1,55 1,14 0,76 8,45 170,0 95 65
4 21,15 7 x 1,96 1,14 0,76 9,68 301,0 125 85
2 33,62 7 x 2,47 1,14 0,76 11,21 376,0 170 115
1 42,36 7 x 2,78 1,40 1,14 13,42 461,5 195 130
1/0 53,49 19 x 1,89 1,40 1,14 14,53 609,0 230 150
2/0 67,43 19 x 2,12 1,40 1,14 15,68 747,0 265 175
3/0 85,01 19 x 2,39 1,40 1,14 17,03 915,0 310 200
4/0 107,20 19 x 2,68 1,40 1,14 18,48 1132,0 360 230
250 127,00 37 x 2,09 1,65 1,65 21,23 1390,0 405 255
300 152,00 37 x 2,29 1,65 1,65 22,63 1641,0 445 285
350 177,00 37 x 2,47 1,65 1,65 23,89 1889,0 505 310
400 203,00 37 x 2,64 1,65 1,65 25,08 2137,0 545 335
500 253,00 37 x 2,95 1,65 1,65 27,25 2627,0 620 380
600 304,00 37 x 3,23 2,03 1,65 29,97 3144,0 690 420
650 329,00 37 x 3,37 2,03 1,65 30,95 3409,0 725 440
700 355,00 37 x 3,49 2,03 1,65 31,79 3593,0 755 460
