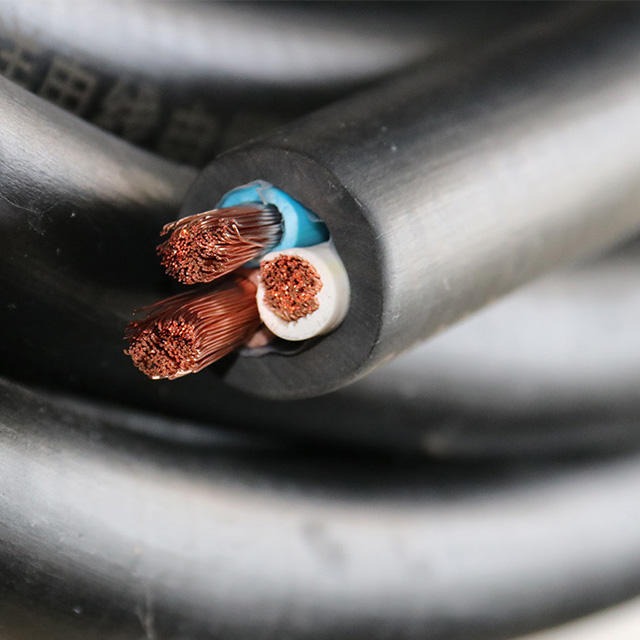

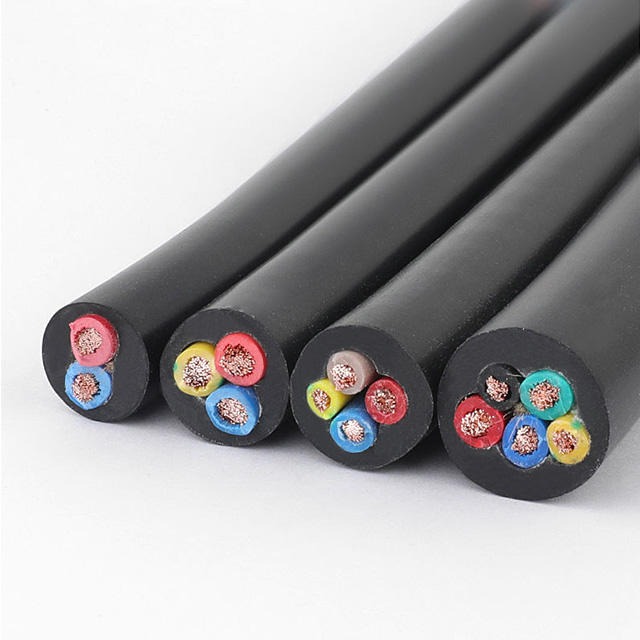

SJOOW Mutil-Core Welding Cable Submarine Flexible Copper Rubber Cable
Description
1.Product use
The product is suitable for rated AC voltage up to and including 450/750V household appliances, power tools and various mobile electrical equipment.
2.feature
A)U0/U is 450/750V, 300/500V and 300/300V
B) The long-term allowable working temperature of the cable core shall not exceed 60℃ C) “W” type derived cable has weather resistance and certain oil resistance, suitable for outdoor or contact with oil.
3.Product structure size and reference data
60245 IEC 53 (YZ) Rubber cord size（rated voltage 300/500V）
60245 IEC 57 (YZE)Rubber cord size（rated voltage 300/500V）
| Core NO × Nominal cross section of Conductor mm2 | The largest single line diameter in conductor mm | Insulation thickness rated value mm | sheath thickness rated value mm mm | mean outside diameter mm | Maximum conductor resistance at 20℃ Ω／km | ||
|---|---|---|---|---|---|---|---|
| lower limit | upper limit | Copper core | Tin plating Copper core | ||||
| 2×0.75 | 0.21 | 0.6 | 0.8 | 5.7 | 7.4 | 26.0 | 26.7 |
| 2×1 | 0.21 | 0.6 | 0.9 | 6.1 | 8.0 | 19.5 | 20.0 |
| 2×1.5 | 0.26 | 0.8 | 1.0 | 7.6 | 9.8 | 13.3 | 13.7 |
| 2×2.5 | 0.26 | 0.9 | 1.1 | 9.0 | 11.6 | 7.98 | 8.21 |
| 3×0.75 | 0.21 | 0.6 | 0.9 | 6.2 | 8.1 | 26.0 | 26.7 |
| 3×1 | 0.21 | 0.6 | 0.9 | 6.5 | 8.5 | 19.5 | 20.0 |
| 3×1.5 | 0.26 | 0.8 | 1.0 | 8.0 | 10.4 | 13.3 | 13.7 |
| 3×2.5 | 0.26 | 0.9 | 1.1 | 9.6 | 12.4 | 7.98 | 8.21 |
| 4×0.75 | 0.21 | 0.6 | 0.9 | 6.8 | 8.8 | 26.0 | 26.7 |
| 4×1 | 0.21 | 0.6 | 0.9 | 7.1 | 9.3 | 19.5 | 20.0 |
| 4×1.5 | 0.26 | 0.8 | 1.1 | 9.0 | 11.6 | 13.3 | 13.7 |
| 4×2.5 | 0.26 | 0.9 | 1.2 | 10.7 | 13.8 | 7.98 | 8.21 |
| 5×0.75 | 0.21 | 0.6 | 1.0 | 7.6 | 9.9 | 26.0 | 26.7 |
| 5×1 | 0.21 | 0.6 | 1.0 | 8.0 | 10.3 | 19.5 | 20.0 |
| 5×1.5 | 0.26 | 0.8 | 1.1 | 9.8 | 12.7 | 13.3 | 13.7 |
| 5×2.5 | 0.26 | 0.9 | 1.3 | 11.9 | 15.3 | 7.98 | 8.21 |
60245 IEC 81(YH) and 60245 IEC 82 (YHF) Welding machine cable
| MODLE | NAME | RATED VOLTAGE（V） | CORE | NOMINAL CROSS SECTION OF CONDUCTOR mm2 | EXECUTIVE STANDARD |
|---|---|---|---|---|---|
| 60245 IEC 81 (YH) 60245IEC 82(YHF) | Welding machine cable | 1 | 16~95 | GB/T5013.6-2008 |
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
