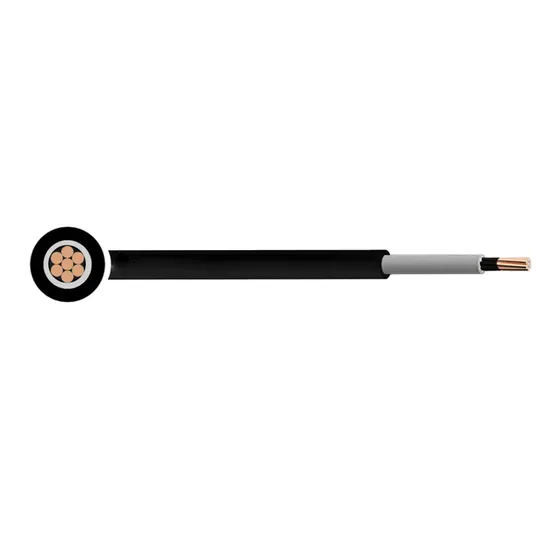

Single Core (N) Sgaou Nsgaou Rubber Cable
Description
Application:
(N)SGAÖU Cable for short circuit and grounding connections. Available in rated voltages from 1kV to 6kV, they are suited to use in rail vehicles, buses, switch cabinets and continuously operating installations. Installation can be in pipes and pipe
work ducts as well as in dry interiors, both indoor and outdoors, as well as dry, humid, wet or oily environments.
Construction:
Conductor Class 2 stranded Copper
Separator Tape
Additional semi-conductive layer over conductor for 3.6/6kV
Insulation EPDM (Ethylene Propylene Diene Monomer) 3GI3 Type
Sheath Rubber 5GM3 Type
Information:
Voltage Rating
0.6/1 kV
1.8/3 kV
3.6/6 kV
Temperature Rating
Fixed: -40°C to +80°C
Mobile: -25°C to +80°C
Standards:
DIN VDE 0250-1, DIN VDE 0250-602, DIN VDE 0295, DIN VDE
0298-3/4, IEC/EN 60228, BS 6360, DIN VDE 0472-501/502/503,
DIN VDE 0472-303/401/402/602/ 615, HD 383,
UV/Ozone resistant to IEC/EN 60811-2-1
Flame Retardant to IEC/EN 60332-1-2
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
