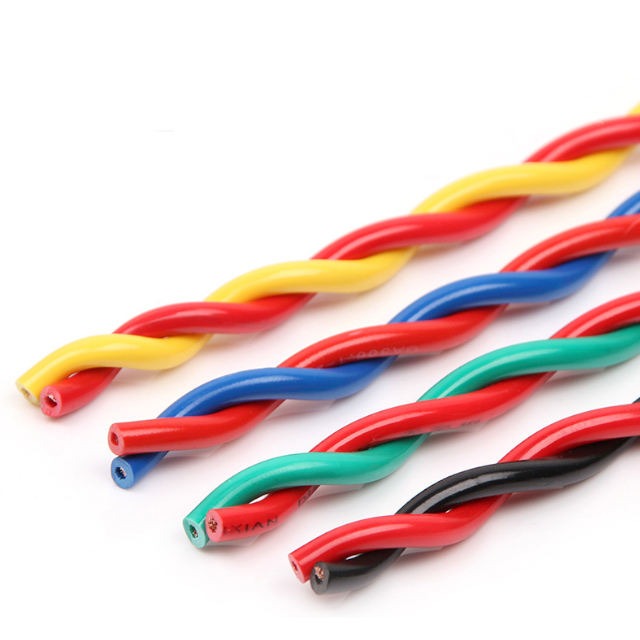

RVS Twist Pair Wire Flexible Cable Electrical Wires
Description
1. Product use
The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.
2.operating characteristic
A)U0/U is 450/750V, 300/500V and 300/300V
B) The long-term allowable working temperature of the cable core shall not exceed 70℃
Bv-90 should not exceed 90℃, short-term working temperature can be raised
to 105℃
The cable laying temperature shall not be lower than 0℃
C) Allowable bending radius of cable:
If the cable outer diameter (D) is less than 25mm, it should not be less than 4D
If the cable diameter (D) is 25mm and above, it shall not be less than 6D
3.Product structure, size and reference data
| Core NO× Nominal cross section of conductor mm2 | Largest diameter of single line in the conductor mm | Insulation Thickness mm | Upper limit of average outside diameter mm | conductor biggest resistance at 20 ℃ Ω/km | Minimum Insulation resistance at 70℃ MΩ·km | |
|---|---|---|---|---|---|---|
| copper core | Tin plated copper | |||||
| 2×0.5 | 0.16 | 0.8 | 6.0 | 39.0 | 40.1 | 0.016 |
| 2×0.75 | 0.16 | 0.8 | 6.2 | 26.0 | 26.7 | 0.014 |
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
