Description

ROV Tether Cable are widely used in interconnecting subsea installations; connecting subsea installations to fixed and floating platforms as well as connecting systems to shore .

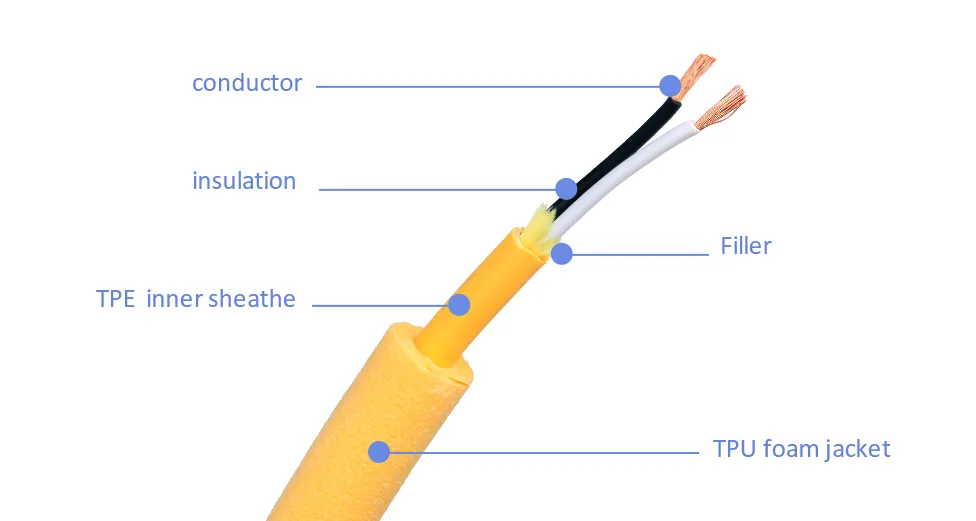

Cable structure:
1.Conductor: High-flexibility (90.9%) oxygen-free copper wire (or changed to tinned copper conductor)
2.Insulation: foamed thermoplastic elastomer/ TPE/ TPV material as the insulation material of the cable;
3.Core structure: torsional delamination structure, grouping gap filling, twisting structure after stratification cluster;
4.Core color: black digital distinction, or color line core color discrimination
5.Shielding: aluminum foil wrapped in Mala, braided shield with high-flexible tin-plated copper mesh
6.Shielding structure: split screen (single layer or double layer) main screen (single layer or double layer); total screen (single layer or double layer)
7.Winding: flexible nonwoven / polyester tape wrapped
8.Tensile fill: Kafla center or gap filling, as well as Kafla tensile fabric layer (customized as required);

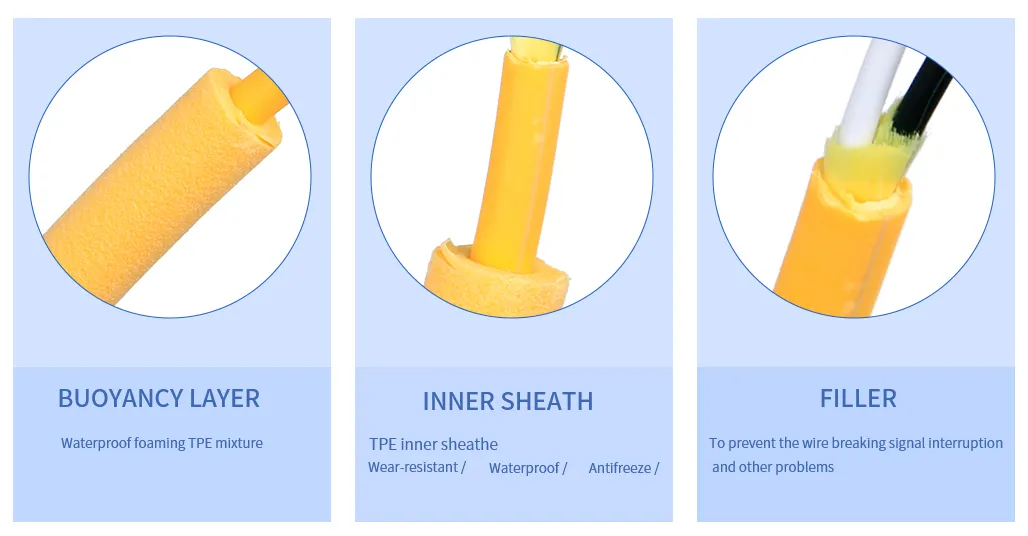

9.Outer sheath: high flexible foamed polyurethane material, wear resistance, tensile resistance, waterproof, oil resistance, cold resistance, corrosion resistance
10.Inner sheathing: low viscosity strong extrusion type inner sheath (can be customized according to need);
11.Color: orange, yellow, blue, etc.

Technical parameters
