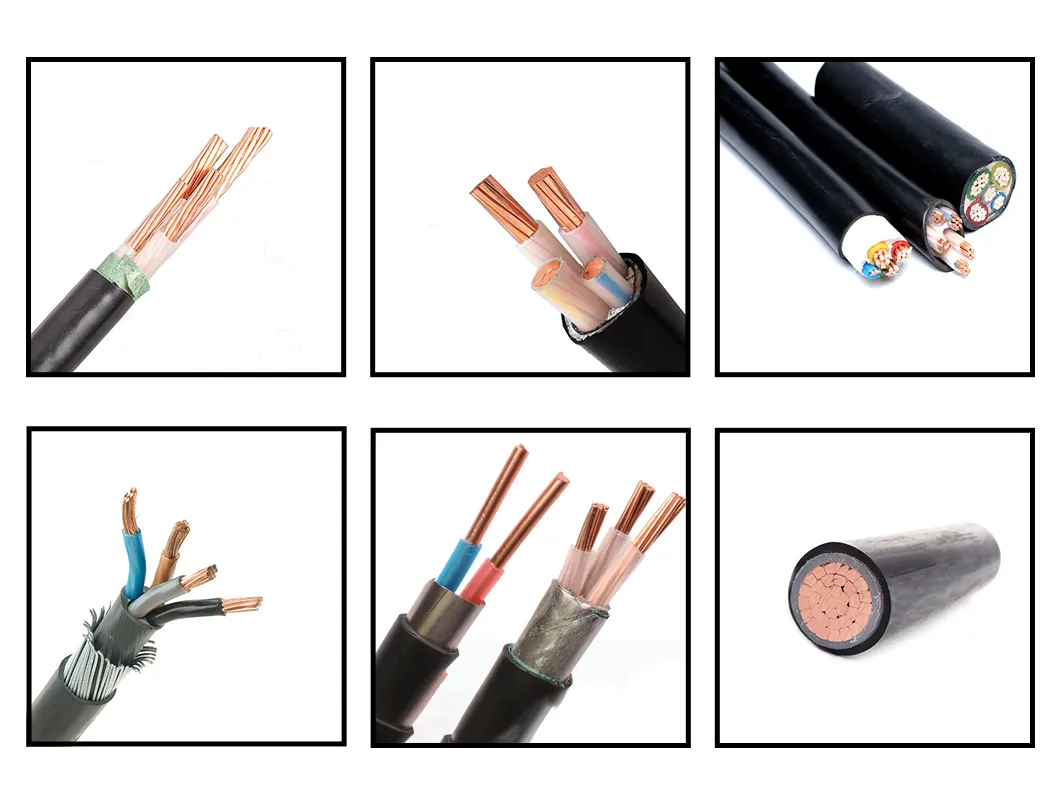

N2xsy/Na2xsy17.5kv Medium Voltage Sta Swa Armoured Electric Cables
Description
Voltage
0.6/1KV, 6/35KV
Construction
Conductor : Compact stranded Aluminum/copper conductor(IEC 60228)
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ºC
Insulation Screen: Semi-conductor
Screen : Copper/steel tape/wire
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying
single core cable in magnetic ducts is not allowed.
Standards
nterInational: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJLSV only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJLSV only)
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:up to 35kV
Maximum Conductor Temperature: under normal (90 ºC), emergency (130ºC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp. 0 ºC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
The products can be produced according to the specifications of our factory, which is equivalent to the IEC60502 standard. Their structure is very simple. The maximum allowable operating temperature is 90C. It is easy to use, and the laying is not limited by the height difference.
Remarks: Including flame retardant, fireproof, and termite-proof products.
| British Standard MV cables | Voltage Rating | ||
|---|---|---|---|
| BS6622 – standard British MV cable | 6.35/11kV | 19/33kV | |
| BS7835 – LSZH British MV cable | 6.35/11kV | 19/33kV | |
| European standard MV cables | Voltage Rating | ||
| N2XSY – single copper core XLPE insulated with PVC oversheath | 6/10kV | 12/20kV | 18/30kV |
| N2XS2Y – single copper core XLPE insulated with PE oversheath | 6/10kV | 12/20kV | 18/30kV |
| NA2XSY – single aluminium core XLPE insulated with PVC oversheath | 6/10kV | 12/20kV | 18/30kV |
| NA2XS2Y – single aluminium core XLPE insulated with PE oversheath | 6/10kV | 12/20kV | 18/30kV |
| N2XSEY – 3 copper core XLPE insulated with PVC oversheath | 6/10kV | ||
| N2XS(F)2Y – single copper core XLPE insulated with water blocking powder and PE oversheath | 6/10kV | 12/20kV | 18/30kV |
| N2XS(FL)2Y – single copper core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath | 6/10kV | 12/20kV | |
| NA2XS(F)2Y – single aluminium core XLPE insulated with water blocking powder and PE oversheath | 6/10kV | 12/20kV | 18/30kV |
| NA2XS(FL)2Y – single aluminium core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath | 6/10kV | 12/20kV | 18/30kV |
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
