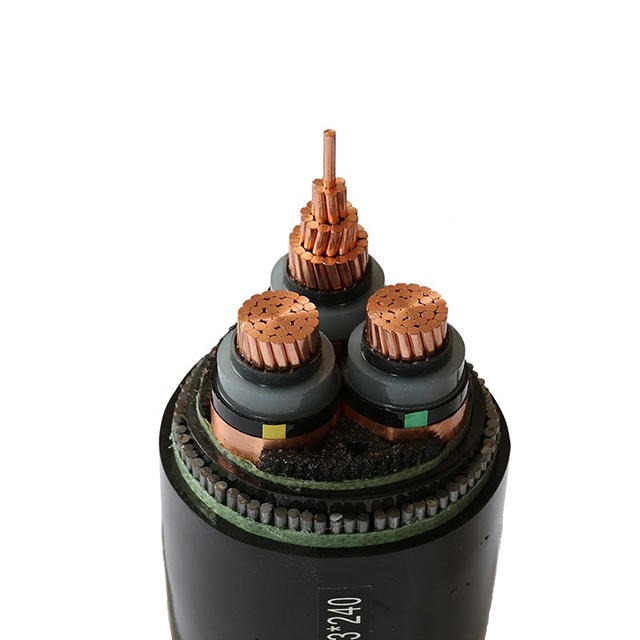

Medium Voltage CU/XLPE/CTS/PVC/SWA/PVC Cable

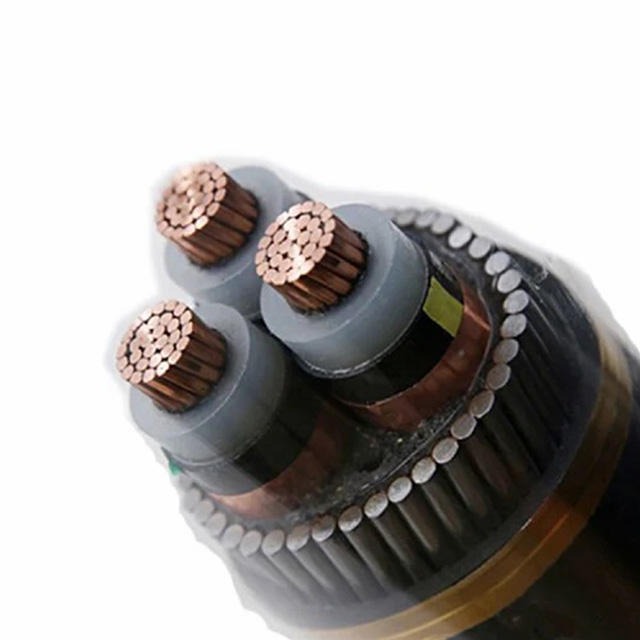

Medium Voltage CU/XLPE/CTS/PVC/SWA/PVC Cable - Image 2

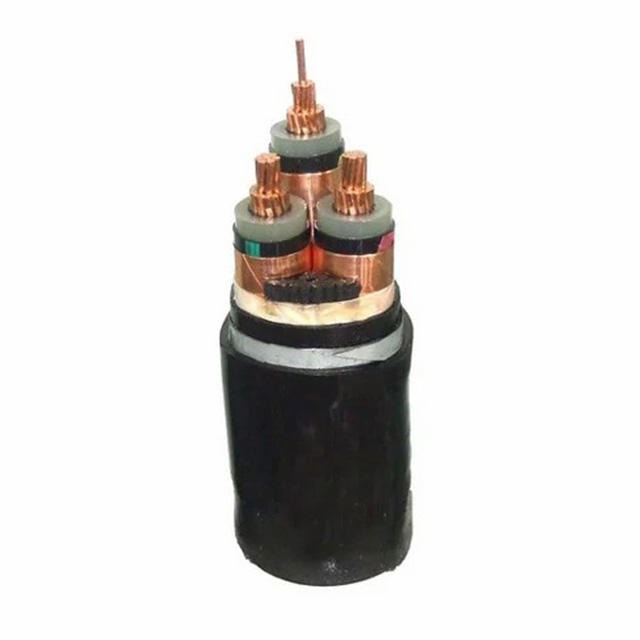

Medium Voltage CU/XLPE/CTS/PVC/SWA/PVC Cable - Image 3
Medium Voltage CU/XLPE/CTS/PVC/SWA/PVC Cable - Image 4
Medium Voltage CU/XLPE/CTS/PVC/SWA/PVC Cable - Image 5

Medium Voltage CU/XLPE/CTS/PVC/SWA/PVC Cable

  • Reply Quickly

  • 7 Days Fast Delivery

  • High Praise Rate

  • Zero Complaints & incidents

Custom H03Z1Z1-F / H05Z1Z1-F LSZH Flexible Cable Manufacturer

View Cart
Details

Wholesale H03VVH2-F Flat Flexible PVC Power Cable

,
View Cart
Details

Custom H03VV-F 300/300 V CU/PVC/PVC Cable Supplier

,
View Cart
Details

China H03V2V2-F / H03V2V2H2-F Industrial Cable Manufacturer

View Cart
Details

China H03RN-F Rubber Coated Cable Manufacturer

View Cart
Details

Conductor: Aluminum or Copper
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Insulation: PVC/LSF/Fire Resistant
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-300mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
We can customize the size according to your requirement

Product Parameter:

Part Number Cross Section Stranding Approx Weight Approx Overall Diameter Gland Size Single Cleat Nom. Max. DC-resist conductor 20° C Current rating laid direct
(mm²) (mm) KG/KM (mm) (mm) (Ohm/km) (Amp)
11KVPVC3X16 3 x 16 7/1.70 3440 44.3 40 1.8 1.15 119
11KVPVC3X25 3 x 25 7/2.14 4060 48.5 50 2 0.727 152
11KVPVC3X35 3 x 35 7/2.52 4495 50.5 50 R9 0.524 181
11KVPVC3X50 3 x 50 19/1.78 5115 53 63s R9 0.387 213
11KVPVC3X70 3 x 70 19/2.14 6035 56.8 63s R10 0.268 260
11KVPVC3X95 3 x 95 19/2.52 7180 61.3 63 R10 0.193 309
11KVPVC3X120 3 x 120 37/2.03 8280 65.1 75s R11 0.153 349
11KVPVC3X150 3 x 150 37/2.25 9325 66.8 75s R11 0.124 390
11KVPVC3X185 3 x 185 37/2.52 10740 72.3 75 R12 0.0991 436
11KVPVC3X240 3 x 240 61/2.52 13820 79.3 90 R14 0.0754 499
11KVPVC3X300 3 x 300 61/2.85 16120 84.2 90 R15 0.0754 553
11KVPVC3X400 3 x 400 61/3.20 19350 92.4 R15 0.047 619

——Our Feature——

1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
