Low Smoke Plenum Fire Alarm Cable
Description
| Gauge | Conductors | Insulation Thickness | Jacket Thickness | Outside Diameter Inches | Material Weight (Lbs./M’) |
|---|---|---|---|---|---|
| 18 | 2 | 0.006 | 0.016 | 0.147 | 20 |
| 18 | 4 | 0.006 | 0.019 | 0.183 | 33 |
| 18 | 6 | 0.006 | 0.016 | 0.216 | 48 |
| 18 | 8 | 0.006 | 0.019 | 0.22 | 60 |
| 16 | 2 | 0.008 | 0.019 | 0.168 | 27 |
| 16 | 4 | 0.008 | 0.019 | 0.21 | 52 |
| 14 | 2 | 0.009 | 0.019 | 0.21 | 47 |
| 14 | 4 | 0.009 | 0.019 | 0.248 | 79 |
| 12 | 2 | 0.013 | 0.019 | 0.252 | 68 |

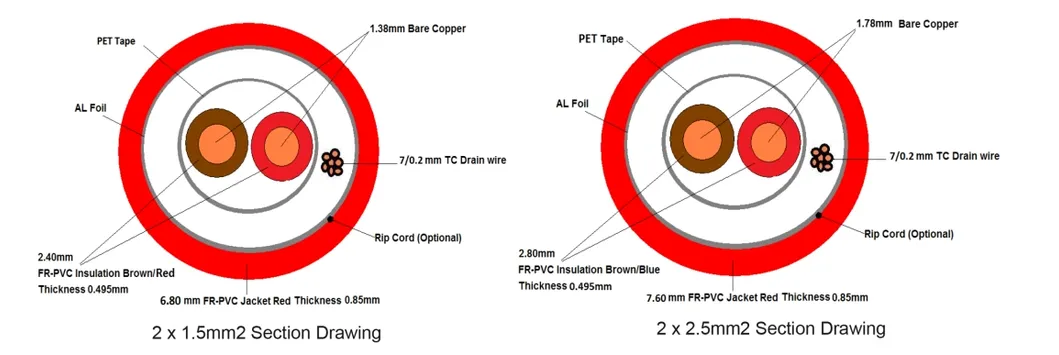

| No. of Cores/Cross-Section (mm2) | Cable diameter (mm) | Insulation diameter (mm) | Jacket diameter (mm) |
|---|---|---|---|
| 2 x 1.5 | 1.38 | 2.40 | 6.8 |
| 2 x 2.5 | 1.78 | 2.80 | 7.6 |
| Category Conductor Description | Solid bare copper |
|---|---|
| Category Insulation Description | Premium-grade Polyvinyl Chloride (PVC) |
| Category Assembly Description | Conductors cabled together |
| Shield | Overall aluminum/polyester shield and #18(16/30) tray cable drain wire |
| Category Jacket Description | Red, premium-grade Polyvinyl Chloride (PVC) Other jacket color options available upon request |
About this item
Multiple Applications: Fire Protective Signaling Circuits, Smoke Detectors, Strobes/Sirens, Pull Stations, Voice Communications, Burglar Alarms, Audio, Control, Initiating & Notification Circuits, Microprocessor/Addressable Controlled Systems.
Pure Copper Conductors: Our fire alarm wire is built with solid bare copper conductors, providing maximum conductivity and reliability to ensure that your systems run smoothly.
Shielding Performance: The aluminum foil shielding layer prevents electromagnetic interference (EMI) from affecting the signal transmission within the cable. By blocking external interference, the aluminum foil ensures that the signal remains clear and free from distortion.
FPLR (Riser-Rated): Our cable is designed with your safety in mind. It features a FPLR/CMR/CL3R/FT4/Riser-Rated flame-retardant rating that provides peace of mind in case of fire. This type of cable is commonly used in commercial projects where enhanced fire safety requirements are needed, exceeding the basic fire safety rating of CM cables.
Installation-Friendly Design: With its round, slick jacket and smooth edges, our cable is easy to pull through rough corners and edges. The jacket also features a rip cord for effortless removal during installation.
Advantage
* Low smoke, no halogen, fire retardant, fire resistant, environmental
* Low smoke in fire, no halogen which decrease the damage to equipments and humans
* High retardance to fire, self- extinguishing
* Long operational life span, equal to structures life span
* Higher resistance to electromagnetic interferencen
* Superior earth continity (The bare CPC is placed between two metallic tapes)
* Enhanced resistance to cable kinks (Subsequently protecting cables performance)
* Extremely robuast/durable design (Due to increased tape numbers and overlap)
* Improved data transmission (Due to twisted cores and additional screening)
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
