Description

1. executive standard
TICW/05-2009
2.use
It is suitable for the control circuit and signal protection and measurement route with long-term working temperature below 180T and rated voltage 0.6/lkV. The product can be widely used in some special occasions such as atomic energy industry, automatic controller, daily electric appliance, coal mine power station and high temperature heating equipment.

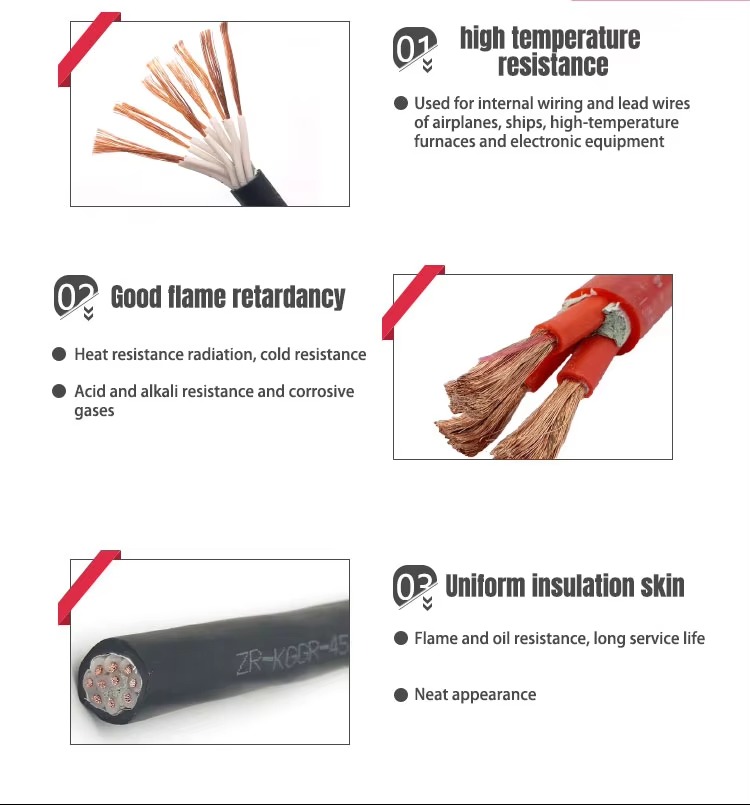

3. product feature
3.1 The product has excellent flexibility and can be used for occasions with small bending radius.
3.2 The product has high heat resistance and cold resistance, its operating temperature range is -60℃~180℃
3.3 The product has excellent resistance to ozone aging, ultraviolet aging and atmospheric aging.
3.4 The product has good mildew resistance, and its water absorption is not more than 0.015%.
3.5 The product has excellent electrical insulation performance, the electrical insulation is still relatively stable when temperature and frequency change or moisture.
4. Product structure size and reference data

model	name	core	Nominal cross section of conductor mm2

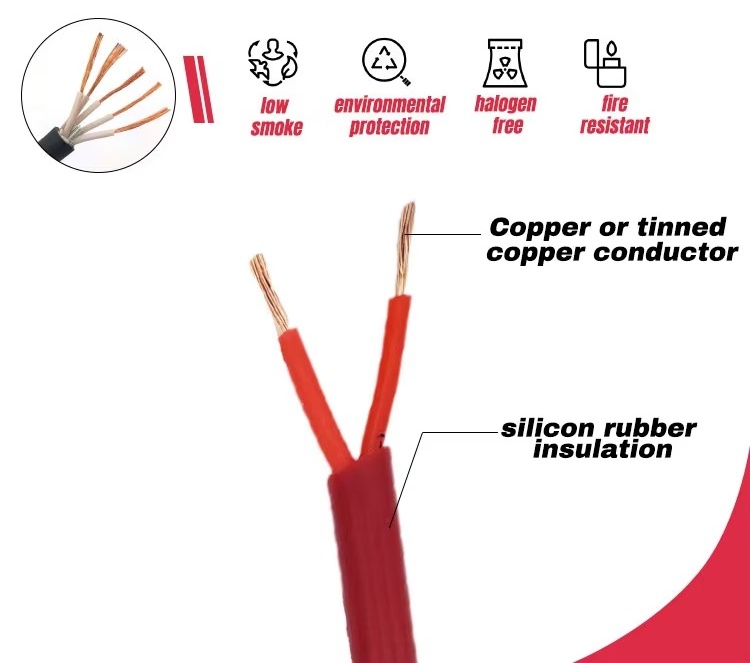

KGG	Copper core silicone rubber insulated silicon rubber sheathed control cable	2~37 2~14	0.75 /1.0 1.5/ 2.5 4 /6

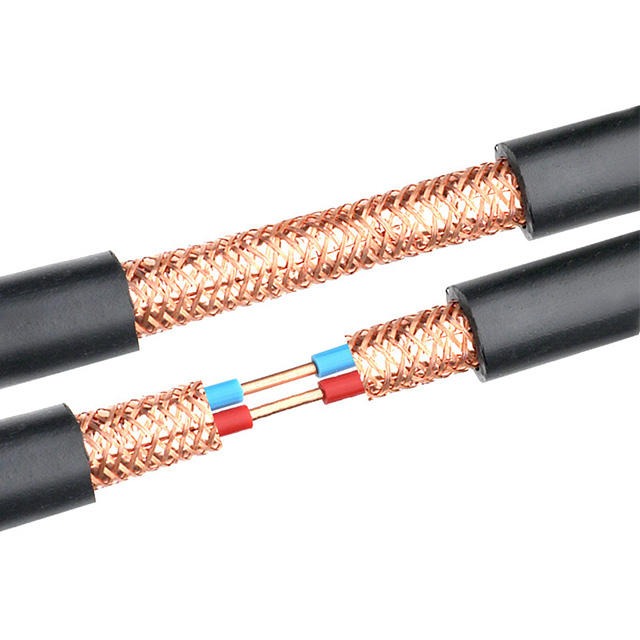

KGGP	Copper core silicone rubber insulated silicone rubber sheath braided shield control cable	2~37 2~14	0.75 /1.0 1.5/ 2.5 4 /6
KGGP2	Copper core silicone rubber insulated silicone rubber sheathed copper belt shielded control cable	4~37 2~14	0.75 /1.0 1.5 /2.5 4 /6
KGG2G	Copper core silicone rubber insulated steel tape armoured silicone rubber sheathed control cable	7~37 4~37 2~14	0.75 /1.0 1.5/ 2.5 4/ 6
KGG3G	Copper core silicone rubber insulated fine steel wire armored silicone rubber sheathed control cable	7~37 2~14	0.75/ 1.0 1.5 /2.5 4/ 6
KGGR	Copper core silicone rubber insulated silicone rubber sheath control flexible cable	2~37	0.5 /0.75 1.0/ 1.5/2.5
KGGRP	Copper core silicone rubber insulated silicone rubber sheath braided shield control flexible cable	2~37	0.5 /0.75/ 1.0 1.5/ 2.5
note：recommend core series：2、3、4、5、7、8、10、12、14、16、19、24、27、30、37 core
