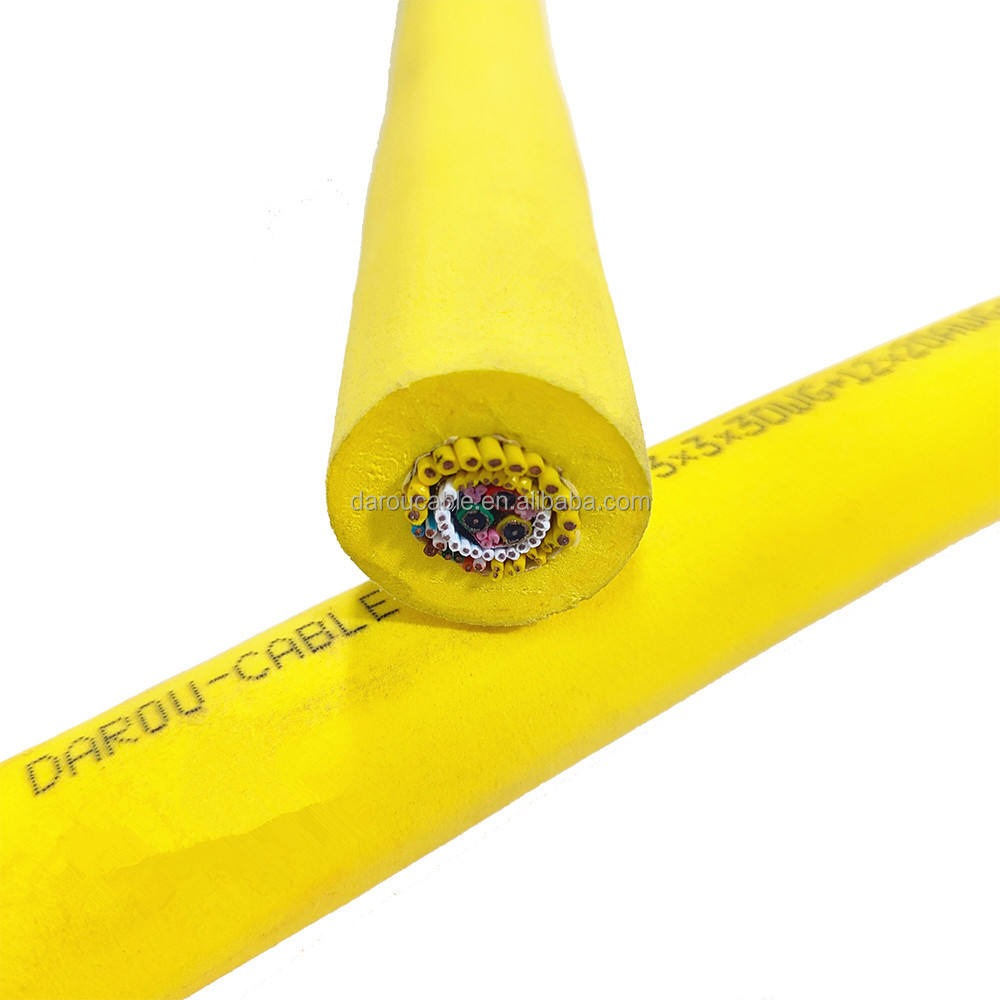

high speed data rover underwater cable
Description
Kevlar fiber : space filled fiber impregnated water barrier can block any Leakage caused by scratches or cracks cable-high-visibility
Water-blocking fiber : lock leaking
Yellow polyethylene foam : wear-resistant and provides neutral buoyancy stiff cable design flexibility is good enough to give you plenty of freedom for your ROV romance but hard enough not to become easy Floating in fresh water / brine
Core color : Color Separation
Rated Voltage : 300/500V
Temperature Range : -40°C~+90°C
Tensile Structure :Imported Kevlar Bulletproof Wire
Conductor : Anodized Bare Copper/ Tinned Copper
Insulation : Special Seawater-proof PE Material
Inner Sheath :Foam-proof Seawater-specific Polyether Polyurethane (Anti-seawater, oil-resistant, acid-base, corrosion-resistant, anti-dragging, anti-microbial erosion)
Outer Sheath : Polyurethane Glossy Anti-seawater Corrosion Special Material
Cable size as you wish
| Specification | Insulation Diameter(mm) | Sheath Diameter(mm) |
| 2 x 12 AWG | 4 | 18 |
| 2 x 16 AWG | 2.9 | 12.4 |
| 2 x 18 AWG | 2.4 | 10.2 |
| 2x16AWG + 1x18AWG | 2.9/2.4 | 13.5 |
| 2x16AWG + 2x22AWG | 2.9/2.0 | 13.2 |
| 4x16AWG + 2x20AWG | 2.9/2.0 | 17.8 |
| Coxial + 3x2x16AWG | / | / |
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
