Description

1. Product use

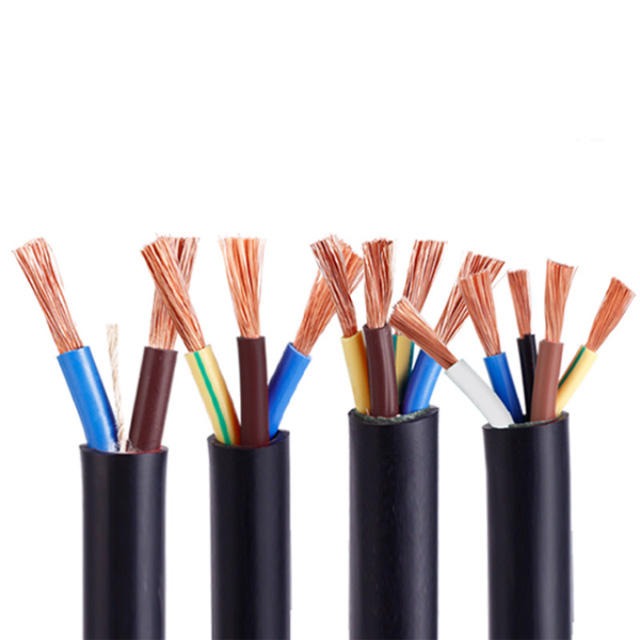

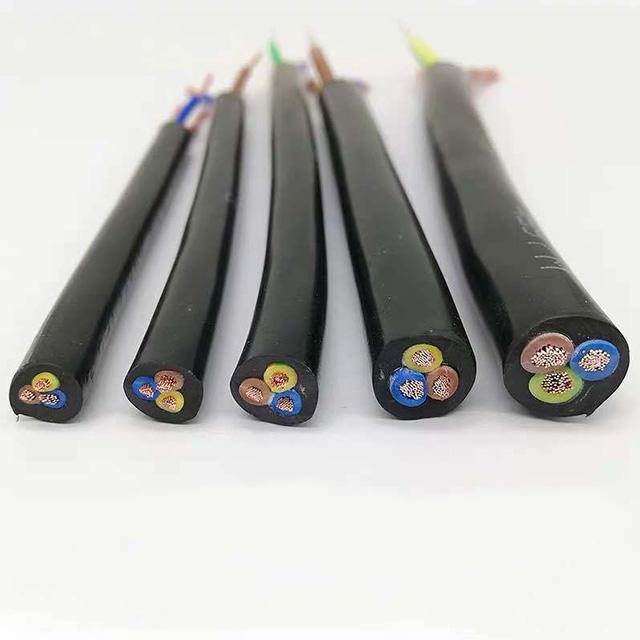

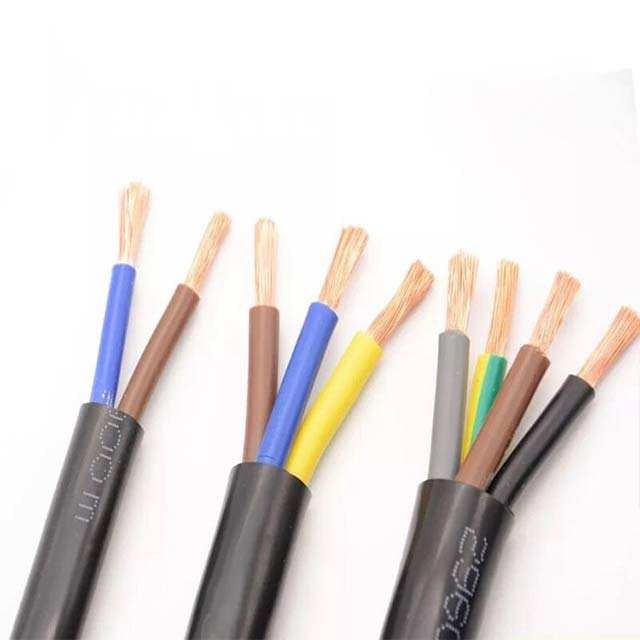

The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.
2.operating characteristic
A)U0/U is 450/750V, 300/500V and 300/300V
B) The long-term allowable working temperature of the cable core shall not exceed 70℃
Bv-90 should not exceed 90℃, short-term working temperature can be raised
to 105℃
The cable laying temperature shall not be lower than 0℃
C) Allowable bending radius of cable:
If the cable outer diameter (D) is less than 25mm, it should not be less than 4D
If the cable diameter (D) is 25mm and above, it shall not be less than 6D
3.products model and technical parameters

Core NO× nominal cross section mm2	conductor species	Insulation Thickness mm	approximation protective layer thickness mm	sheath thickness rated value mm		average outside diameter mm		conductor biggest resistance at 20 ℃ Ω/k
Core NO× nominal cross section mm2	conductor species	Insulation Thickness mm	approximation protective layer thickness mm	lower limit	upper limit	Copper core	Tin plated copper	conductor biggest resistance at 20 ℃ Ω/k
2×0.75	5	0.6	0.8	6.0 or 3.8×6.0	7.6 or 5.2×7.6	26.0	26.7	0.011
2×1	5	0.6	0.8	6.4	8.0	19.5	20.0	0.010
2×1.5	5	0.7	0.8	7.4	9.0	13.3	13.7	0.010
2×2.5	5	0.8	1.0	8.9	11.0	7.98	8.21	0.009
3×0.75	5	0.6	0.8	6.4	8.0	26.0	26.7	0.011
3×1	5	0.6	0.8	6.8	8.4	19.5	20.0	0.010
3×1.5	5	0.7	0.9	8.0	9.8	13.3	13.7	0.010
3×2.5	5	0.8	1.0	9.6	12.0	7.98	8.21	0.009
4×0.75	5	0.6	0.8	6.8	8.6	26.0	26.7	0.011
4×1	5	0.6	0.9	7.6	9.4	19.5	20.0	0.010
4×1.5	5	0.7	1.0	9.0	11.0	13.3	13.7	0.010
4×2.5	5	0.8	1.1	10.5	13.0	7.98	8.21	0.009
5×0.75	5	0.6	0.9	7.4	9.6	26.0	26.7	0.011
5×1	5	0.6	0.9	8.3	10.0	19.5	20.0	0.010
5×1.5	5	0.7	1.1	10.0	12.0	13.3	13.7	0.010
5×2.5	5	0.8	1.2	11.5	14.0	7.98	8.21	0.009

4.Flame retardant, fire resistance, low smoke halogen-free, termite and other shielding wire range:
(1) Flame retardant shielded wire is suitable for voltage 300/300V and below have flame retardant requirements of electrical appliances, instruments and electronic equipment and automation devices.
(2) Fire-resistant shielded wire is suitable for voltage 300/300V and below fire-resistant electrical appliances, instrumentation and electronic equipment and automation devices.
(3) Halogen-free low smoke shielded wire is suitable for voltage 300/300V and below, with low smoke, low poison and flame retardant fire resistance requirements of electrical equipment, instrumentation and electronic equipment and automation devices.
(4) Termite-proof shielded wire is suitable for electric appliances, instrumentation and electronic equipment and automation devices with voltage 300/300V and below where termite damage is more serious.

——Our Feature——

1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
