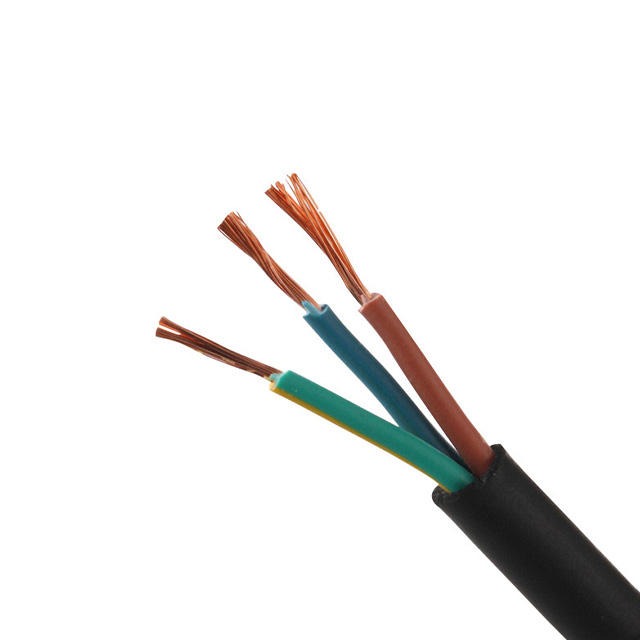

H05rn-f H07rn-f Flexible Rubber Sheathed Power Cables - Image 2

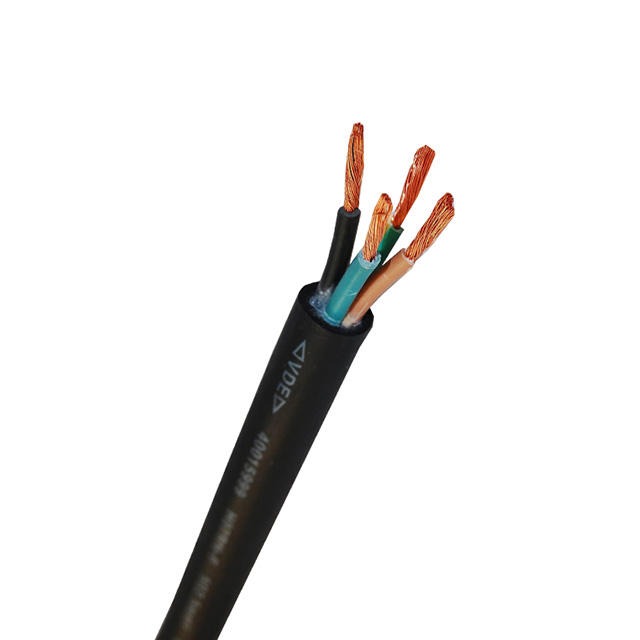

H05rn-f H07rn-f Flexible Rubber Sheathed Power Cables - Image 3

H05rn-f H07rn-f Flexible Rubber Sheathed Power Cables

  • Reply Quickly

  • 7 Days Fast Delivery

  • High Praise Rate

  • Zero Complaints & incidents

Custom H03Z1Z1-F / H05Z1Z1-F LSZH Flexible Cable Manufacturer

View Cart
Details

Wholesale H03VVH2-F Flat Flexible PVC Power Cable

,
View Cart
Details

Custom H03VV-F 300/300 V CU/PVC/PVC Cable Supplier

,
View Cart
Details

China H03V2V2-F / H03V2V2H2-F Industrial Cable Manufacturer

View Cart
Details

China H03RN-F Rubber Coated Cable Manufacturer

View Cart
Details

H07RN-F Cable Construction:
Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
Conductor Stranding: from 2 conductors stranded in layers
Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
Jacket Color: Black

H07RN-F Cable Technical Data:
Nominal Voltage: Uo/U 450/750 volts
Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
Min. Bending Radius: 15 x O.D.

H07RN-F Cable Ratings & Approvals:
Temperature Range: -25°C to +60°C
VDE
CE

Working voltage and temperature:
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60C

Type Nominal Section (mm2) Structure of Conductor Insulation Thickness (mm) Jacket thickness (mm) Overall Diameter (mm) Rated Voltage Max. Conductor Resistance at 20°C (Ω/KM)
Core No./Dia.(mm)

H07RN-F

 1×1.5mm2 30/0.25 0.8 14 6.2±0.2 450/750V 13.3
1×2.5mm2 49/0.25 0.9 1.4 6.6±02 450/750V 7.98
1x4mm2 56/0.3 1 1.5 7.9±0.3 450/750V 4.95
1x6mm2 84/0.3 1 1.6 8.7±0.3 450/750V 3.3
2×1 mm2 32/0.2 0.8 1.3 8.3±0.3 450/750V 19.5
2×1.5mm2 30/0.25 0.8 1.5 9.3±0.3 450/750V 13.3
2×2.5mm2 49/0.25 0.9 1.7 11.2±0.4 450/750V 7.98
2×4 mm2 56/0.3 1 1.8 12.8±0.4 450/750V 4.95
2×6 mm2 84/0.3 1 2 14.4±0.4 450/750V 3.3
3×1 mmz 32/0.2 0.8 1.4 9±0.3 450/750V 19.5
3×1.5mmz 30/0.25 0.8 1.6 10.1±0.4 450/750V 13.3
3×2.5mm2 49/0.25 0.9 1.8 12.1±0.4 450/750V 7.98
3×4 mm2 56/0.3 1 1.9 13.9±0.4 450/750V 4.95
3×6 mm2 84/0.3 1 2.1 15.4±0.5 450/750V 3.3
4x1mm2 32/0.2 0.8 1.5 10±0.4 450/750V 19.5
4×1.5mmz 30/0.25 0.8 1.7 11.1±0.4 450/750V 13.3
4×2.5mm2 49/0.25 0.9 1.9 13.3±0.4 450/750V 7.98
4x4mm2 56/0.3 1 2.0 15.2±0.5 450/750V 4.95
4x6mm2 84/0.3 1 2.3 17.2±0.5 450/750V 3.3
5×1 mm2 32/0.2 0.8 1.6 11±0.4 450/750V 19.5
5×1.5mm2 30/0.25 0.8 1.8 12.2±0.4 450/750V 13.3
5×2.5mm2 49/0.25 0.9 2.0 14.6±0.5 450/750V 7.98
5×4 mm2 56/0.3 1 22 16.9±0.5 450/750V 4.95
5×6 mm2 84/0.3 1 25 19.1±0.6 450/750V 3.3
H03RN-F 1X0.5mm2 16X0.2 0.6 0.6 3.4±0.15 300/300V 39
1X0.75mm2 24X0.2 0.6 0.6 3.6±0.15 300/300V 26

H05RN-F

 2X0.75mm2 24/0.2 0.6 0.8 6.3±0.2 300/500V 26
2X1 mm2 32/0.2 0.6 0.8 6.7±0.2 300/500V 19.5
3X0.75mm2 24/0.2 0.6 0.9 6.8±0.2 300/500V 26
3X1 mm2 32/0.2 0.6 0.9 7.2±0.2 300/500V 19.5
