Flexible Rubber Sheathed (N) Shouo/J Mining Cable
Description
Applications
These cables are used for the connection of mobile machines under extremely high mechanical loads, predominantly in mining situations, e.g. for coal-cutting machines, also can be operated via guide pulleys (cable cars) or used as a reeling cable (LHD), suitable for extreme bending loads, high tensile stress,and impact and crushing loads.

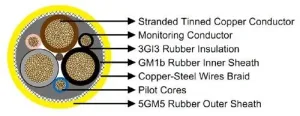

Constructions
Conductors: Flexible stranded tinned copper conductor.
Insulation: Heatresistant3GI3 rubber based on EPR.
Outer Conductor Layer: Easy strippable outer conductive layer.
Pilot Cores:Copper and steel conductor capable of expansion and compression with 3GI3 EPR rubber insulation.
Monitoring Conductor: Copper and steel conductor capable of expansion and compression covert with semi-conductive rubber compound.
InnerSheath: Rubber type GM1b.
Armour/Earth Conductor:Concentric earth conductor as tensile-stress-resistant braided armour of combined copper-steel wires.
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.
| (N)TSCGEWÖU | Flexible cable for fixed energy distribution in mines and alongside material handling equipment |
| (N)TSCGEWÖU FO fibre optics | Flexible reeling cable with integrated fibre optic wires for high and extreme mechanical stresses, including torsional stress, deflection into different planes, and high reeling speed. Suitable for indoor and outdoor applications |
| (N)TSCGEWÖU ATB higher flexibility | Flexible cable for energy supply to heavy mobile equipment such as drag lines, shovels, dredges, drills, under extreme mechanical stresses and abrasions during trailing operations in opencast mines |
| (N)TSCGEWÖU ZH zero halogen | Flexible cable for energy supply to heavy mobile equipment such as drag lines, shovels, dredges, drills, under extreme mechanical stresses and abrasions during trailing operations in opencast mines. Halogen-free polyurethane sheathed version |
| (N)TSCGEWÖU submersible | Flexible supply cable for permanent use in salty and brackish water immersion up to 300 metres under high mechanical stress. For applications such as pumps, dredges and floating docks. It is suitable for trailing operations of opencast mining equipment |
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
