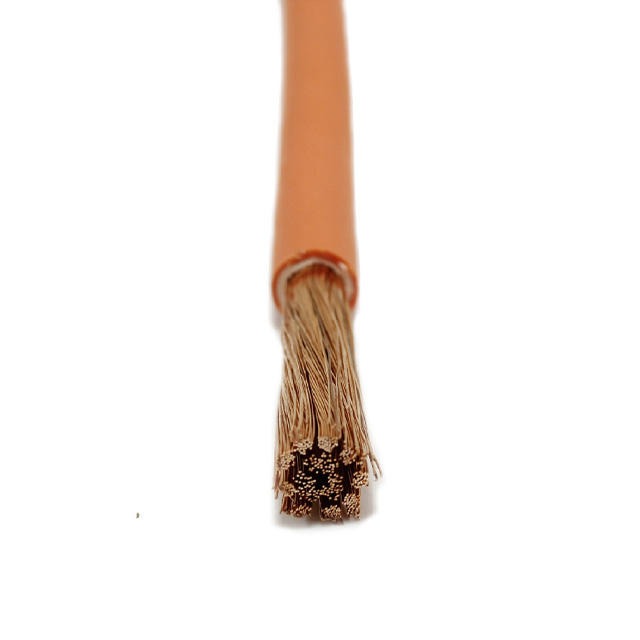

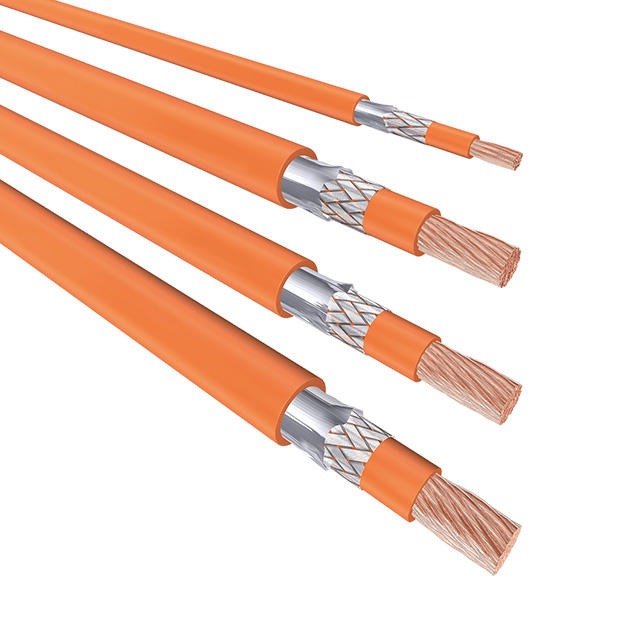

EV EVP EVRP High Voltage Cable for New Energy Vehicle Charging Pile
Description
APPLICATION:
This High Voltage Screened EV Cable is intended for Electric Vehicle battery high voltage system, flexible and easy to bend. This High Voltage electric vehicle screened cable is used for connecting the charging port and the battery, battery inter wiring, the battery, and the engine and other electrical components to carry the electric current power. this type of high voltage electric vehicle screened cable can meet the very high performance for the harsh environment requirements inside the car.
The Screened EV cable is halogen-free and cold resistance, oil resistance, good EMI and EMC electromagnetic interference abilities, flame retardant as it passed vertical flame propagation.

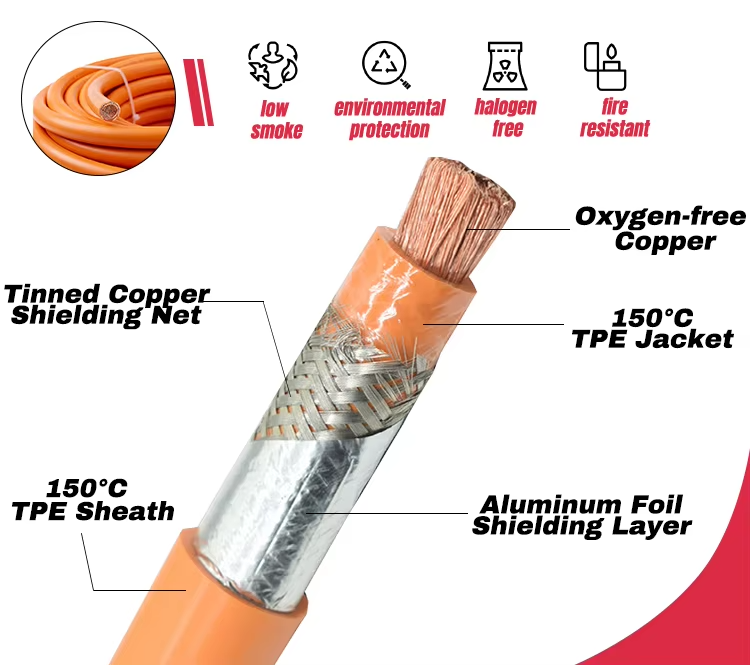

CONSTRUCTION:
| Conductor | Annealed Soft Copper wire |
|---|---|
| Insulation | 125℃~150℃ Thermosetting elastomers/150℃ TPE |
| Screen | Tinned Annealed Soft Copper wire braided |
| Sheath | 125℃~150℃Thermosetting elastomers/150℃TPE |
TECHNICAL DATA:
| Min. bending radius | 5OD, Easy to bend and install |
|---|---|
| oil resistance, gasoline, diesel oil, and engine oil | Good |
| Max.Working temperature | ISO6722 Class C:125℃,Class D:150℃ |
| low-temperature toughness | Excellent ,ISO6722,GB/T25085 |
| Working Temperature | -40°C~125°C、-40°C~150°C |
| Rated Voltage | 600V 1000V 1500V |
SPECIFICATION:
| Cable Size | Nominal Out Diameter | Reference Current | DC Conductor Resistance at 20℃ | Temperature | Sheath Color |
|---|---|---|---|---|---|
| mm2 | mm | Amp | Ω/km | ℃ | Orange |
| 2.5 | 5.6 | 30 | 7.6 | -40~125/150 | Orange |
| 4 | 7.3 | 40 | 4.71 | -40~125/150 | Orange |
| 6 | 7.7 | 52 | 3.14 | -40~125/150 | Orange |
| 10 | 9.6 | 75 | 1.82 | -40~125/150 | Orange |
| 16 | 10.9 | 100 | 1.16 | -40~125/150 | Orange |
| 25 | 12.9 | 125 | 0.74 | -40~125/150 | Orange |
| 35 | 14.5 | 165 | 0.53 | -40~125/150 | Orange |
| 50 | 17 | 215 | 0.37 | -40~125/150 | Orange |
| 70 | 21 | 260 | 0.26 | -40~125/150 | Orange |
| 95 | 24 | 320 | 0.2 | -40~125/150 | Orange |
| 120 | 27 | 370 | 0.15 | -40~125/150 | Orange |
