Coaxial Kx6 Power TV CATV CCTV Coaxial Camera Cable
Description
Standard :IEC/NFC 93-550

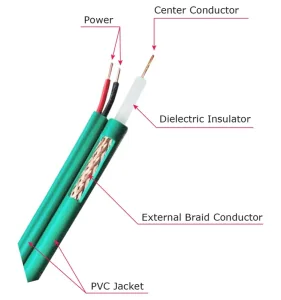

Construction :
1.Conductor :Solid or Standed copper wire or
CCS(Copper clad seel) wire
2.Dielectric : PE /Foam PE
3.First Shied:Al-Foil 100% Covering
4.Second Shied:BC/TC/CCA Braiding wire
5.Jacket:PE/PVC
6.Jacket Color:White/Black/Grey/Green
Characteristic:
1.Temperature Rating :-15°C up to 70°C
2.Voltage Rating:300/300V
3.Max.Tensile Strength:345N
4.Impedance:50/75±3Ω
5.Min ineer bending radius:5 x over rall diameter
6.Behaviour in free :Flame retardant to IEC 60332-1
Application:
Coaxial cables and TV cables are applied for broadband transmission of radio,TV ,video and data signals. And used as distribution cable where low attenuation is required for indoor CATV,CCTV,cable TV and satellite systems.
Specification Parameter :
| BASIC STRUCTURE | RG58/U 50OHM | RG59 75OHM | RG6U 75OHM | RG11 75OHM | RG213 50OHM | KX6 75OHM | |
|---|---|---|---|---|---|---|---|
| Conductor | Material | BC/TC | BC/CCS | BC/CCS | BC/CCS | BC | BC |
| No.Diameter | 19*0.18mm | 20AWG/0.81mm | 18AWG/1.02mm | 14AWG/1.63mm | 7*0.75mm | 7*0.2mm | |
| Dielectric | Material | SPE | Foam PE | Foam PE | Foam PE | SPE | SPE |
| No.Diameter | 2.95mm | 3.66mm | 4.57mm | 7.11mm | 7.24mm | 3.8mm | |
| First Shield | Material | AL Foil | AL Foil | AL Foil | |||
| Coverage | 100% | 100% | 100% | ||||
| Second Shield | Material | BC/TC Braiding | AL Braiding | AL Braiding | AL foil+AL Braiding | BC Braiding | BC/CCA Braiding |
| Coverage | 95% | 40-95% | 40-95%(128/0.12) | 40-95% | 96% | 95% | |
| Jacket | Material | PVC/PE | PVC/PE | PVC/PE | PVC/PE | PVC/PE | PVC/PE |
| Thickness | 0.80mm | 0.80mm | 0.80mm | 1.1mm | 0.80mm | 0.80mm | |
| No.Diameter | 4.95mm | 6.10mm | 6.9mm | 10.2mm | 10.3mm | 6.1mm | |
| Conductor Material | 100% Copper (Customized optional: CCS/CCA/CCC) |
|---|---|
| Conductor Diameter | 7 × (0.2mm ± 0.02 mm) |
| Conductor Wire Gauge | 20 AWG |
| Insulation Material | Solid PE |
| Insulation Diameter | 3.66 mm ± 0.2 mm |
| Insulation Construction | With Foil (Customized optional) |
| AL Foil Material | APG (Customized optional: APA/AP/BAPG) |
| AL Foil Width | 14 mm (Customized optional: 13 mm) |
| AL Foil thickness | > 0.024 mm |
| AL Foil Overlap Rate | ≥ 16% |
| Braid Material | CCAM (Customized optional: CCA/AL/Copper/TC) |
| Braid Coverage | 40% – 95% |
| Jacket Material | PVC(Customized optional: PE/PVC+PE/LSZH) |
| Jacket Diameter | 6.1 mm ± 0.3 mm |
| Power Conductor Material | CCA (Customized optional: BC) |
| Power Conductor Wire gauge | 2 × [ 16 × (0.2mm ± 0.02 mm) ] (Customized Other) |
| Power Insulation Material | HDPE |
| Power Insulation Diameter | 1.8 mm ± 0.2 mm |
| Power Jacket Material | PVC(Customized optional: PE/PVC+PE/LSZH) |
| Power Jacket Diameter | 8.1 mm ± 0.2 mm |
