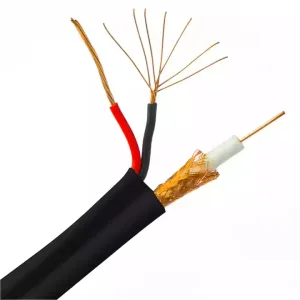

CCTV Kx7 Kx8 Kx6 +2c Coaxial Cable with Power Cable
Description
1.Production Description:
RG6 + Power Cable
| Brand Name | Qinshan | Type | Combined Cable |
|---|---|---|---|
| Conductor | BC / TC / CCA / CCC | Colour | Customized |
| Shield | AL Foil / TC or BC Braid | Place of Product | Zhejiang,China |
| Certification | CE / ROSH / ISO9001 | Modes of packing | Roll In Carton |
| Insulation | PVC / PE | Jacket | PVC |
| Length | 100M 200M 300M 500M / Roll | Work Temperature | -30ºC~+75ºC |
2.Product Parameter:
| Structure | Material | RG6 DUAL | RG6TRI | RG6 QUAD |
|---|---|---|---|---|
| Conductor | BC/CCS | 1.02mm(18AWG,0.04”) | ||
| Dielectric | FPE | 4.8mm(0.18”) | ||
| 1st Shield | Al Foil | 100%, Overlap>2mm | ||
| 2nd Shield | BC or Al Braiding | 30%-95% | 60% | |
| 3rd Shield | Al Foil | – | 100%, Overlap>2mm | |
| 4th Shield | BC or Al Braiding | – | – | 40% |
| Jacket PVC/PE | Outer Diameter | 6.91mm(0.272”) | 7.02mm(0..276”) | 7.62mm(0.30”) |
| Nominal Thickness | 0.76mm(0.030”) | 0.76mm(0.030”) | 0.86mm(0.034”) | |
| Messenger | Steel | 1.30mm or 1.83mm | ||
3.Application:
1.Fast and Reliable Connection
2.Durable and Reasonable Design of the Structure Realizes the High Performance
3.Wide Frequency Range
4.Fine Shields Protect the Data Transmission and Reduce the Interference
5. New Design of the Jacket Shows the Sense of Technology and Smartness
6.Jacket Color in Lucidity, Lucidity Blue , Black,White or as per Your Requirement
4.Product Details:
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
