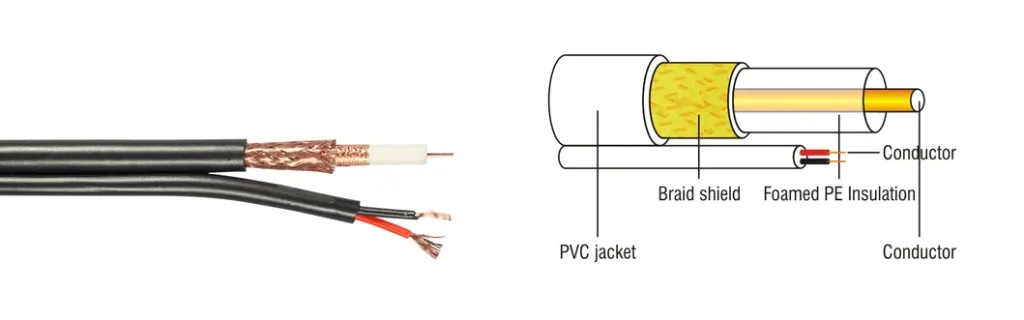

Description

Inner Conductor:1/0.81mm Bare Copper
lnsulation: 3.70mm Foamed Polyethylene
Shield:BC or CCS wire Braid
Jacket: 6.OOmm PVC
TWISTED PAIR CABLE (S):
Inner Conductor:7/0.38mm BC or CCA
lnsulation:1.60mm PVC or PE
Jacket: 4.80mm PVC
Flammability grade: CMX,CM
Operating temperature:-25~70ºC
Reference Standard:MIL-C-17

ELECTRICALCHARACTERISTICS
Impedance:75±3Ω
Capacitance:55±3pF/m
Max Attenuation:(20ºC)

ELECTRICALCHARACTERISTICS

Impedance:75±3Ω
Capacitance:55±3pF/m
Max Attenuation:(20ºC)

50	dB/100m	6.80
100		8.85
200		12.78
400		19.50
700		27.86
900		32.78
1000		35.08

APPLICATlON
Used for the signal sequences of the video and audio, at the 1GHz below.

——Our Feature——

1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
