Carbon Fiber Heating Cable Low Voltage Insulated Warm Floor Underfloor Heating Application
Description
| Item | Value |
|---|---|
| Product Name | Carbon fiber heating cable |
| Insulating material | Silicone rubber |
| Max enduring temperature | 200C degrees |
| Heating temperature | based on the using length |
| Heating conductor | 12K |
| Leakage current | 0.05mA/m |
| The product can withstand max power | 25W/M |
| Diameter | 3±0.1 MM (Thicker and Safer) |
| Color | Red |
| Infrared wavelength | 8UM-18UM |

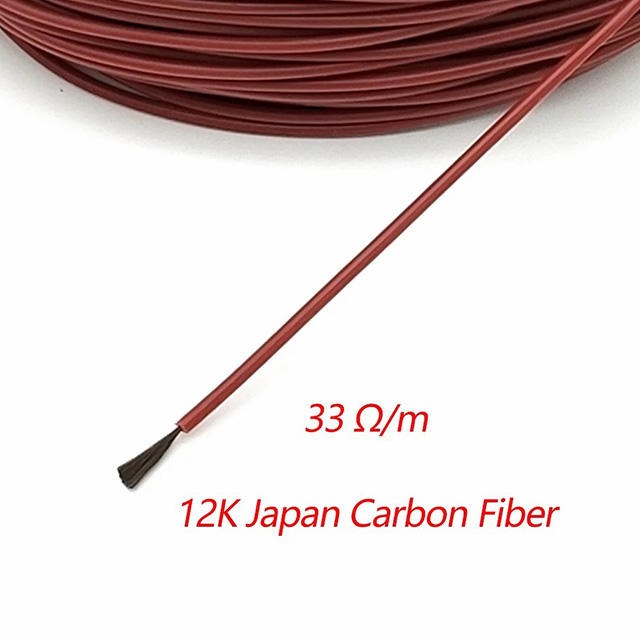

| Conductor resistance | 33±10% Ω/m |
What is the resistance per meter?
1K=450Ohm/m, 3K=133hm/m, 6K=6Ohm/m, 9K=43Ohm/m, 12K=33Ohm/m, 15K=24Om/m, 18K=21Ohm/m, 24K=17Ohm/m, 36K=12Ohm/m, 48K=8.5Ohm/m
The difference between silicone and PTFE
PTFE/PFA/FEP carbon fiber heating wire
Advantages: Wear, corrosion resistance, no smell
Disadvantages: Relative to the silicone are not soft
Silicone carbon fiber heating wire
Advantages: Resistant to bending, soft
Disadvantages: There is smell

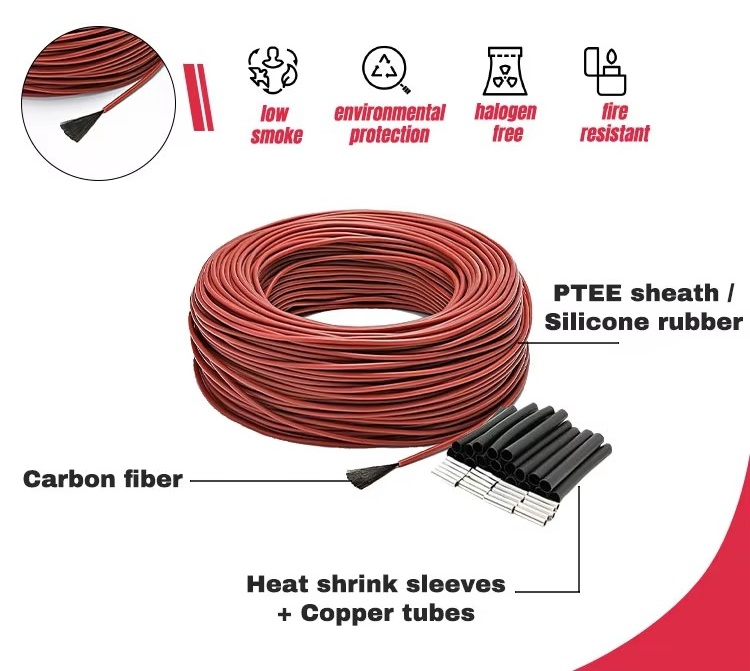

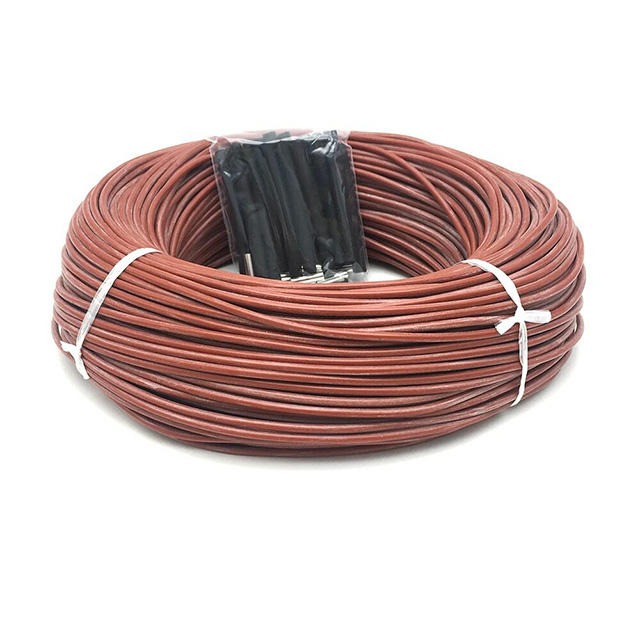

Package Includes:

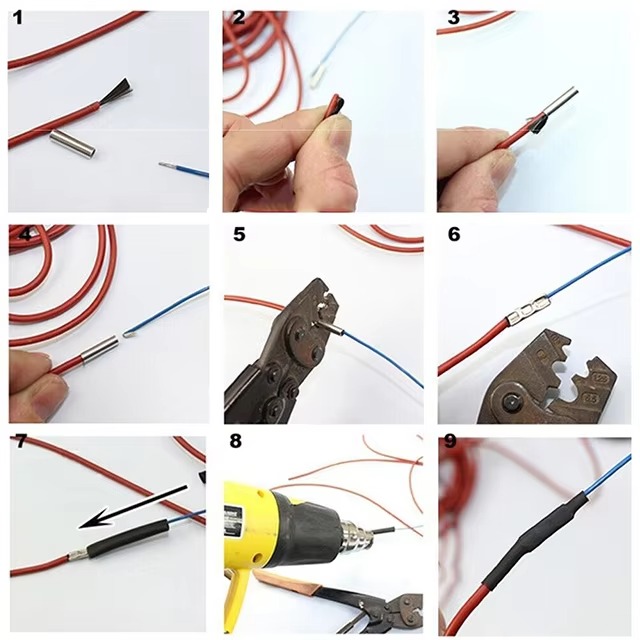

1. Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
1. Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
1. Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
1. Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves
How to calculated power？
Voltage*Voltage÷resistance=electric power
12K=33ohm/meter
For example, using 10m 12K carbon fiber cable on 220V, the power is:
220V*220V÷（10meters*33Ω）=150W
For example, using 15m 12K carbon fiber cable on 220V, the power is:
220V*220V÷（15meters*33Ω）=100W
The longer length, the smaller power, and lower heating temperature.
Application:
Floor heating system residential, villas, apartments, schools, hospitals, shopping malls, hotels, government institutions,
gymnasiums, factories,venues, greenhouses insulation, aquaculture insulation and other place
