Description

Product Construction

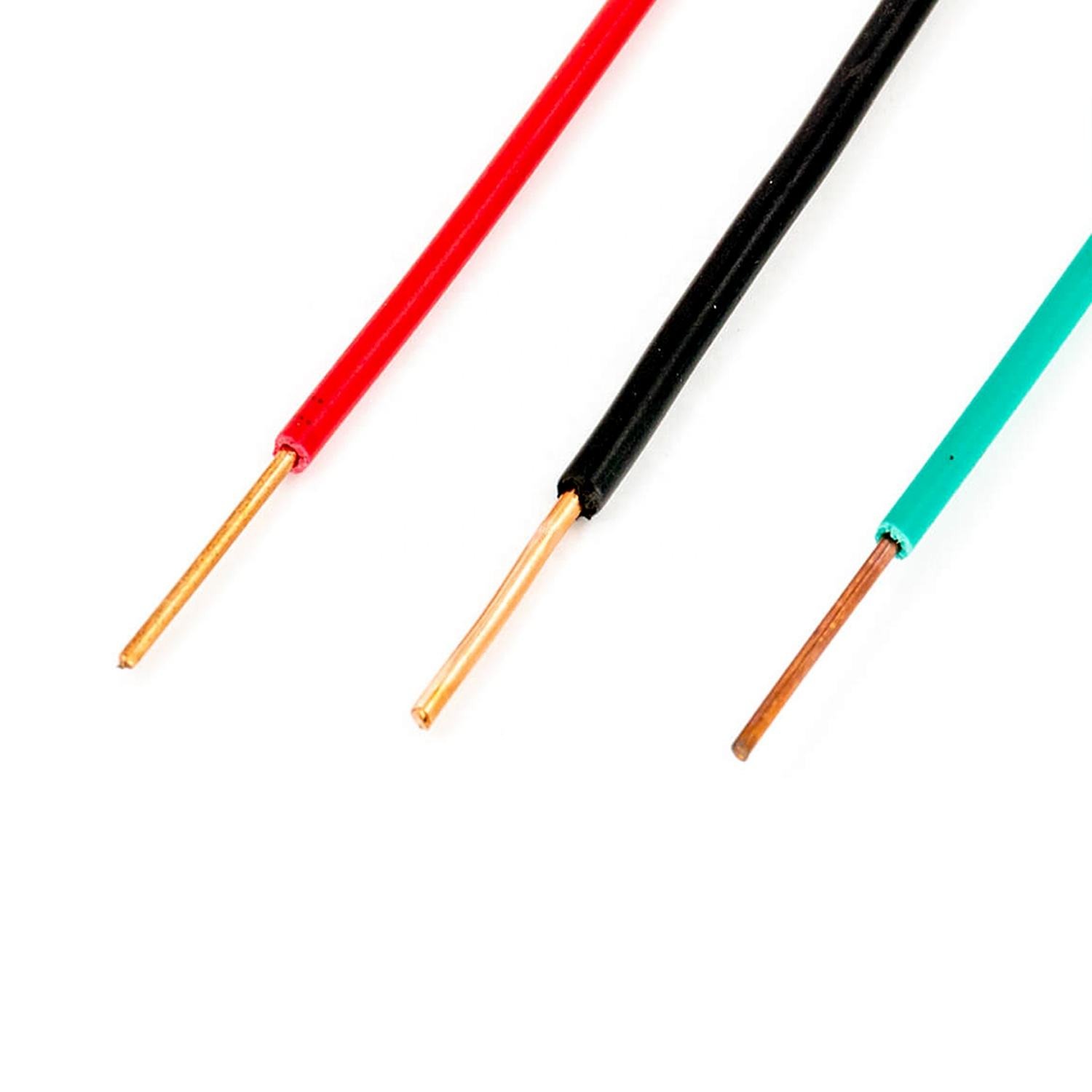

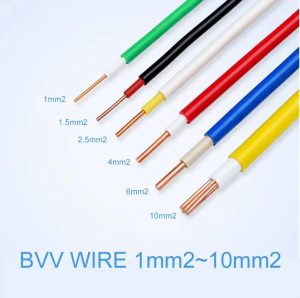

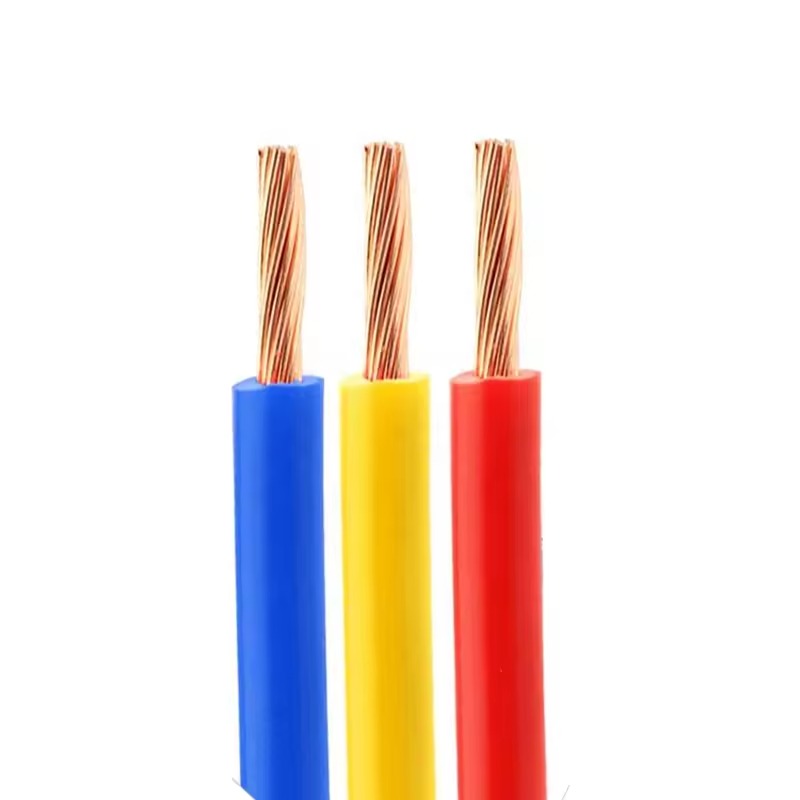

1. Conductor : bare/tinned copper,or Aluminum.
2. Insulation : PVC rated at 70°C
3. Color Code : red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4. Outer sheath : PVC tapes ST2 to IEC.

Service Performance Of Copper Wire
1. Rated voltage : 300/300V ; 300/500V ;450/750V
2. Long-term working temperature : not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius : Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter >25mm.
PRODUCT FEATURES
1. Low resistance and good electrical conductivity.
The core is flexible, bright in color, good in electrical conductivity, stable in voltage, hot, low in resistance and low in consumption.
2. High flexibility, bending resistance and long service life.
Environmentally friendly PVC new material skin, flexible and folding, tensile and wear-resistant, insulation and flame retardant,leaving the open flame, extinguished instantly, to ensure safe use.
3. Low eccentricity, anti-current breakdown.
Adopt advanced equipment, strict production, guarantee the low eccentricity of the wire, the skin is flexible, the thickness is even and wear-resistant, and the current is prevented from penetrating the outer skin, posing a safety hazard.
4. Anti-acid and alkali, oil resistance, moisture proof, mildew proof.
