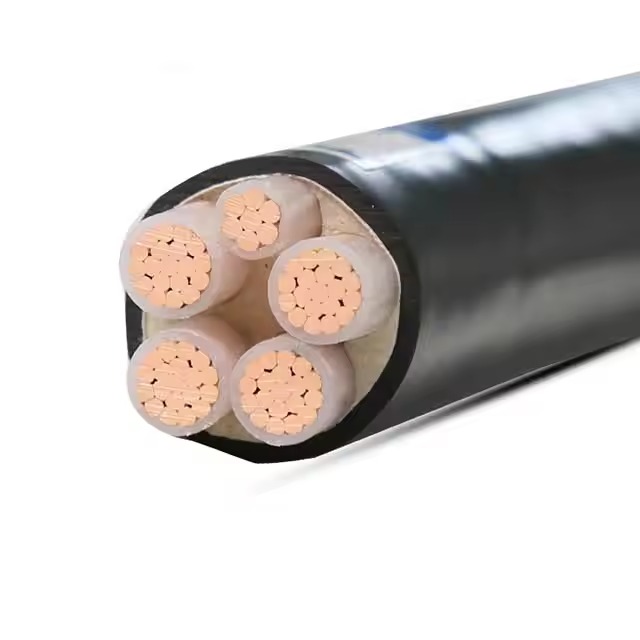

5 Core Low Voltage XLPE/PVC Insulated Power Cable - Image 2
5 Core Low Voltage XLPE/PVC Insulated Power Cable - Image 3

5 Core Low Voltage XLPE/PVC Insulated Power Cable

  • Reply Quickly

  • 7 Days Fast Delivery

  • High Praise Rate

  • Zero Complaints & incidents

Custom H03Z1Z1-F / H05Z1Z1-F LSZH Flexible Cable Manufacturer

View Cart
Details

Wholesale H03VVH2-F Flat Flexible PVC Power Cable

,
View Cart
Details

Custom H03VV-F 300/300 V CU/PVC/PVC Cable Supplier

,
View Cart
Details

China H03V2V2-F / H03V2V2H2-F Industrial Cable Manufacturer

View Cart
Details

China H03RN-F Rubber Coated Cable Manufacturer

View Cart
Details

1.Executive standard
GB/T 12706.1-2020

2.Appilcation
The product is suitable for power supply, transmission and distribution lines with rated AC voltage U0/U 26/35kV and below.

3.Character
A) during normal operation of cable, the maximum conductor temperature shall be 70℃ for PVC insulation and 90℃ for XLPE insulation.
B) Maximum temperature of conductor during short circuit (maximum duration not exceeding 5 seconds) :
PVC insulation — 160℃ for conductor cross section ≤300mm2, 140℃ for conductor cross section > 300mm2; Crosslinked PVC insulation at 250℃.
C) When laying cables, the ambient temperature shall not be less than 0℃, and the minimum allowable bending radius is as follows:
Single core cable: unarmored 20D, armored 15D
Multi-core cable: 15D for unarmored, 12D for armored
Where: D- actual outer diameter of cable.
D) Cable breaking force:
Aluminum core cable: 40×S (N)
Copper core cable: 70×S (N)
Note: S is the total cross-sectional area of the conductor

4.model and application

Model Name Usage
Copper core aluminium core
VV VLV PVC insulated and sheathed power cable Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
VY VLY PVC insulated PE sheathed power cable Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
VV22 VLV22 PVC insulated steel tape armored PVC sheathed power cable Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VV23 VLV23 PVC insulated steel tape armored PE sheathed power cable Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VV32 VLV32 PVC insulated fine steel wire armored PVC sheathed power cable Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
VV33 VLV33 PVC insulated fine steel wire armored PE sheathed power cable Can be laid at indoor, underground .Cable can under take mechanism outside force
YJV YJLV XLPE insulated PVC sheathed power cable Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
YJY YJLY XLPE insulated PE sheathed power cable Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
YJV22 YJLV22 XLPE insulated steel tape armored PVC sheathed power cable Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
YJV23 YJLV23 XLPE insulated steel tape armored PE sheathed power cable Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
YJV32 YJLV32 XLPE insulated fine steel wire armored PVC sheathed power cable Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
YJV33 YJLV33 XLPE insulated fine steel wire armored PE sheathed power cable Can be laid at indoor, underground .Cable can under take mechanism outside force
