PV1-F-06/1KV photovoltaic cable
PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, and friction resistance. It has a long service life and high-quality oxygen-free tinned copper conductors. To ensure the superior conductive effect, high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator have reliable insulating and mechanical properties.

1500V photovoltaic cable H1Z2Z2-K
H1Z2Z2-K, 1500V DC photovoltaic cable is used in the nominal 1.5KV DC voltage photovoltaic power generation system between the conductor and the conductor, and the conductor and the ground. It is an upgraded product on the basis of the original PV1-F-06/1KV photovoltaic cable. Better anti-aging effect.

PV1-F photovoltaic cable

Model: PV1-F Outer diameter of conductor stranded: 2.60mm
Application standard: 2 PfG 1169/08.2007 Insulation nominal thickness: 0.8mm
Conductor material: IEC 60228, Category 5 stranded tinned copper wire Sheath Nominal Thickness: 0.9mm
Insulation material: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin Outer diameter of finished wire: 6.1±0.1mm
Sheath material: radiation cross-linked low-smoke halogen-free flame-retardant polyolefin Conductor resistance (20ºC): ≤5.09Ω/km
Nominal cross section: 4mm2 6mm2 Working environment temperature ºC: -40~+90
current carrying capacity: 5 high Higher conductor temperature: +120ºC
Number of cores: 1 Reference short-circuit allowable temperature: 200ºC5S
Conductor structure: NO./mm 56/0.30 Rated voltage: DC: 1.8kv
AC U. /U: 0.6/1kv

H1Z2Z2-K photovoltaic cable

Conductor section 0.5mm2-300mm2 (other specifications can be customized); Ambient temperature -40℃ to +90℃;
-40 to +194
Conductor Tinned copper stranded wire conforms to EN60228.5 category soft conductor Maximum short-circuit temperature 280°C, +536°F
Insulation Low-smoke halogen-free radiation crosslinked polyolefin Bending radius Fixed installation>4x;
Mobile installation>5x;
Sheath Low-smoke halogen-free radiation crosslinked polyolefin Material characteristics
/standards		 Fire performance: EN 60332-1-2:2004;
Zero smoke emission: 1EC61034: minimum 60% light transmittance
Rated voltage DC 1.5/1.5kV AC 1.0KV Low fire load DIN 51900
Test voltage 6500V, 50HZ, 5 minutes Certification EN50618:2014
Temperature class -45℃ to 125℃; -45 to +257 Application standard EN50618:2014

Single Core PV1-F Solar Cable

Cross section(mm2) Conductor Construction(n/m) ConductorOD
(mm)		 Cable Outer(mm) Resistance Max.(Ω/km) Current Carring Capacity(A) InsulationMin.WallThickness
(mm)		 SheathMin.Wall
Thickness
(mm)
1×1.5mm2 solar cable 30/0.25 1.58 4.90 13.30 30 0.67 0.73
1×2.5mm2 pv cable 50/0.25 2.02 5.45 7.89 41 0.67 0.73
1x4mm2 solar pv cable 56/0.3 2.60 6.10 4.75 50 0.67 0.73
1x6mm2 pv solar cable 84/0.3 3.42 7.20 3.39 70 0.8 0.80
1x10mm2 solar panel cables 142/0.3 4.56 9.00 1.95 98 0.9 0.90
1x16mm2 solar system wiring 228/0.3 5.60 10.20 1.24 132 1.00 0.90
1x25mm2 photovoltaic cable 361/0.3 6.95 12.00 0.795 176 1.19 0.92
1x35mm2 photovoltaic cable 276/0.40 8.74 13.8 218 1.20 1.00

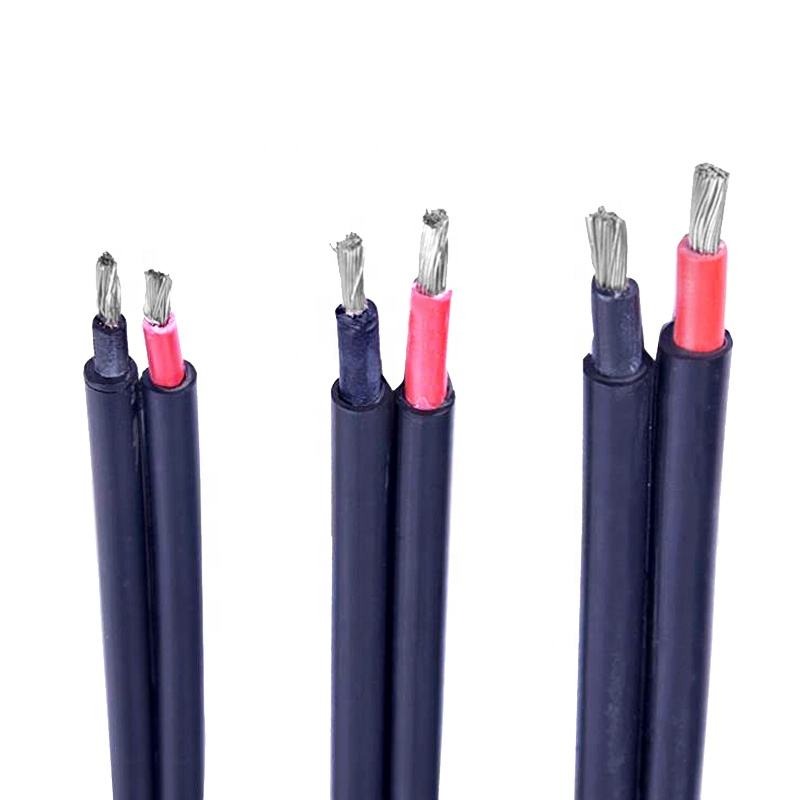

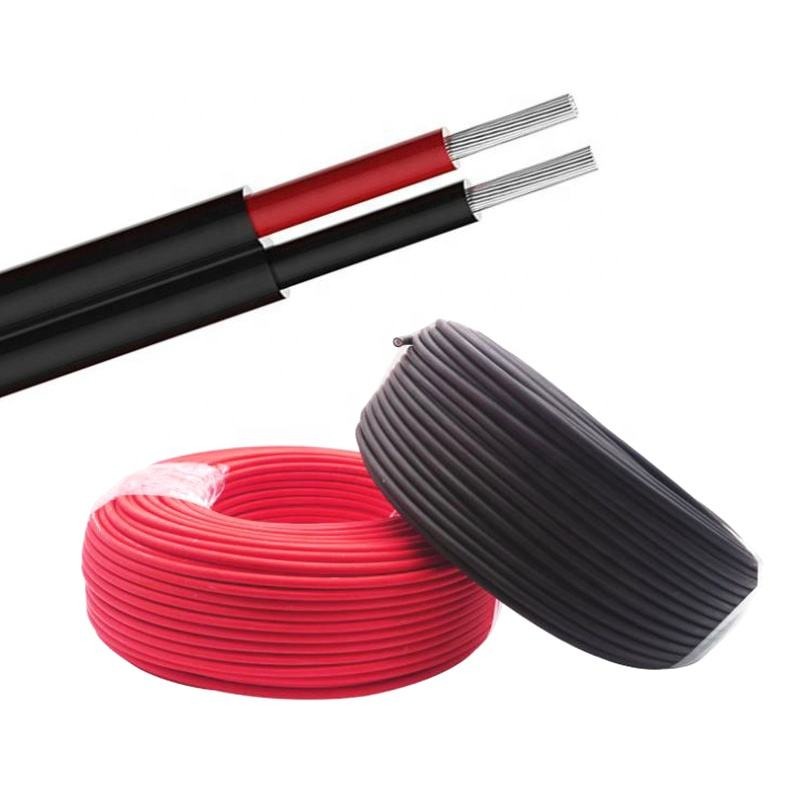

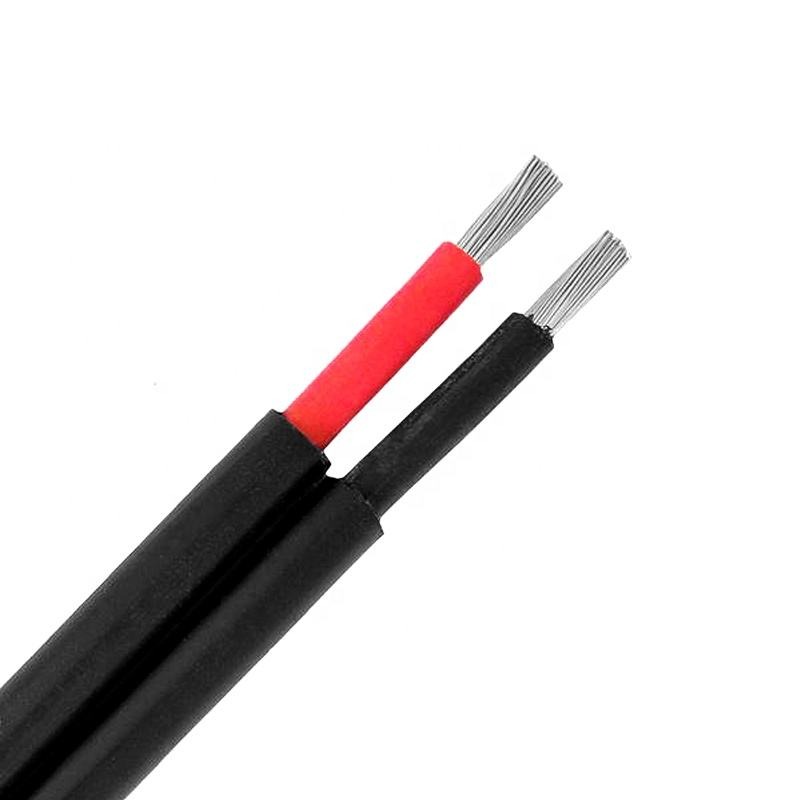

Twin Core PV1-F Solar Cable

Cross sectionmm2 Conductor Construction(n/mm) ConductorOD
(mm)		 Cable Outer(mm) Resistance Max.(Ω/km) Current Carring Capacity(A)
2 x 1.5mm2 twin core solar cable 30/0.25 1.58 8.3 ± 0.2 13.30 30
2 x 2.5mm2 two core solar pv cable 50/0.25 2.02 9.2 ± 0.2 7.98 41
2 x 4mm2 dual core solar cable 56/0.3 2.60 12.0 ± 0.2 4.75 50
2 x 6mm2 pv cable wire 84/0.3 3.42 13.5 ± 0.2 3.39 70
2 x 10mm2 solar cable wire 142/0.3 4.56 17.6 ± 0.2 1.95 98
2 x 16mm2 solar wire 228/0.3 5.60 19.8 ± 0.2 1.24 132

Notice
In addition, we have other models and sizes, please contact us if you need, thank you.
