2491X /218y /2192y/309y /318y /6381y Twin & Earth Electric Cable
Description
Application:
Flexible single core insulated and sheathed PVC cable. Suitable for DC power supplies on telecoms equipment and power applications where flexibility is required
STANDARDS
BS EN 60228, BS 6004, BS EN/IEC 60502-1
Flame Retardant according to BS EN/IEC 60332-1-2

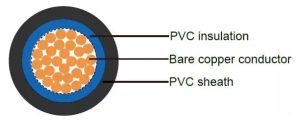

CONSTRUCTION
| VOLTAGE | 1.5mm2 to 35mm2: 450/750V 50mm2 and above: 0.6/1kV |
|---|---|
| CONDUCTOR | Class 5 Flexible Stranded Copper |
| INSULATION | PVC (Polyvinyl Chloride) |
| OUTER SHEATH | PVC (Polyvinyl Chloride) |
CHARACTERISTICS
Voltage Rating:
1.5mm2 to 35mm2: 450/750V
50mm2 and above: 0.6/1kV
Temperature Rating: -15°C to +70°C
Minimum Bending Radius:
Up to 50mm²: 3 x overall diameter
Above 70mm²: 4 x overall diameter
Should not be installed at temperatures below 0°C or above +60°C.
For more information please consult a member of the Cleveland Cable Sales Team.
4.Standard
IEC 60227-2007 or as per customer’s request
Some Type (Remarks: we can design and produce according to customer’s request.)
| Type | Name | Laying Site and Requirements | Long-time Permissible Working Temperature of Conductor(ºC) |
|---|---|---|---|
| 227IEC01/05 BV BLV | Copper Conductor,PVC Insulated Wire | Fixed laid in the circumstance of indoor, conduit etc. | 70 |
| Aluminium Conductor,PVC Insulated Wire | |||
| 227IEC 07 BV-90 | Heat Resistant Copper Conductor,PVC Insulated Wire at 90ºC | Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc. | 90 |
| BVR | Copper Conductor,PVC Insulated Flexible Wire | Fixed laid where flexibility is required. | 70 |
| 227-IEC10 BVV | Copper Conductor PVC Insulated and PVC Sheathed Round Wire | Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground. | 70 |
| BLVV | Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire | ||
| BVVB | Copper Conductor PVC Insulated and PVC Sheathed Flat Wire | ||
| BLVVB | Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire | ||
| 227IEC 02 RV227 IEC 06 RV | Copper Conductor,PVC Insulated Flexible Connector | Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required. | 70 |
| 227IEC 42 RVB | Copper Conductor,PVC Insulated Flat Flexible Connector | ||
| RVS | Copper Conductor,PVC Insulated Flexible Twisting Connector | ||
| 227IEC52 RVV 227IEC53 RVV | Copper Conductor PVC Insulated and PVC Sheathed Round Flexible Connector(Light and Common Type) |
