Description

Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and power transmission lines across rivers and seas. Low-voltage cable: suitable for fixed transmission on the transmission and distribution lines of AC 50Hz, rated voltage 3kv and below for the transmission of electrical energy.

1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996

2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth.

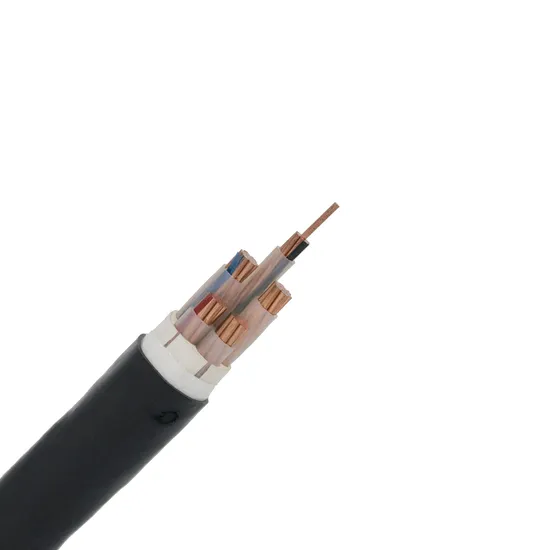

3. Product Description
1) Rated Voltage: 0.6/1KV 1.8/3KV
2) Maxworking temperature: 90°c
3) Maxtemperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 1.5 – 800mm2
6) Insulation:PVC
7) No. of cores: 1, 2, 3, 4, 5
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Minbeding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones

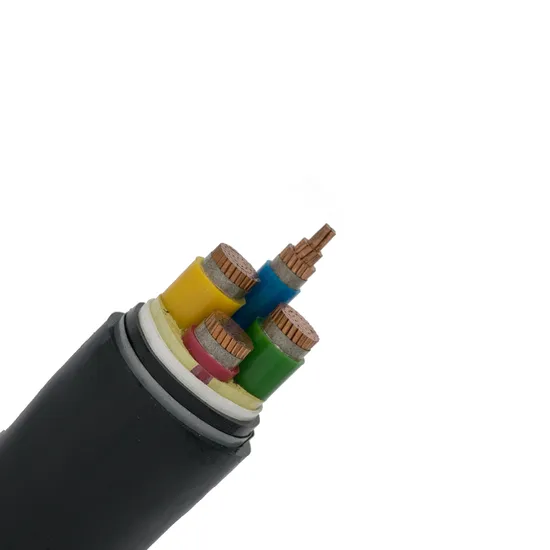

4.Construction
Type No. of Core Nominal cross-section

Type	No. of Core	Nominal cross-section
Cu(AL)/XLPE(PVC)/PVC(PE) Cu(AL)/XLPE(PVC)/ATA/PVC(PE)Cu(AL)/XLPE/AWA/PVC(PE)	1	1.5-1000
Cu(AL)/XLPE(PVC)/STA/PVC(PE) Cu(AL)/XLPE(PVC)/SWA/PVC(PE)	2,3,4,5	1.5-400
Cu(AL)/XLPE(PVC)/STA/PVC(PE) Cu(AL)/XLPE(PVC)/SWA/PVC(PE)	3+1,4+1,3+2	2.5-400

Cross-section area of neutral conductor
In 3+1cores and 3+2cores should conform to specification of following table:

Nominal cross-section	Main core	2.5	4	6	10	16	25	35	50
	Neutral core	1.5	2.5	4	6	10	16	16	25
Nominal cross-section	Main core	70	95	120	150	185	240	300	400
	Neutral core	35	50	70	70	95	120	150	185

5、Specification

Rated	No,of	core ×cross secticn	CONDUCTOR	CORE DIANETER	INSULATION	BELT	JACKET	Reference outer diameter	Reference weight	DC
voltage	CORES	(MM)	CONDUCTOR	(MM2)	THCKNESS (MM)	(MM)	THCKNESS (MM)	(MM)	(kg/km)	RESISTANCE(Ω/KM)
0.6/1KV	1	1×10	7/1.35	4.05	0.7	20×0.20	1.4	8.9	152.7	1.83
	1	1×16	7/1.66	4.98	0.7	20×0.20	1.4	9.9	208.2	1.15
	1	1×25	7/2.14	6.42	0.9	20×0.20	1.4	11.6	318.3	0.727
	1	1×35	7/2.52	7.56	0.9	20×0.20	1.4	12.8	418	0.524
	1	1×50	10/2.52	8.4	1	25×0.20	1.4	13.8	544	0.387
	1	1×70	14/2.52	10	1.1	30×0.20	1.4	15.6	736.7	0.268
	1	1×95	19/2.52	11.6	1.1	35×0.20	1.5	17.4	987.8	0.193
	1	1×120	24/2.52	13	1.2	40×0.20	1.5	19	1226.7	0.153
	1	1×150	30/2.52	14.6	1.4	45×0.20	1.6	21.2	1522.6	0.124
	1	1×185	37/2.52	16.2	1.6	50×0.20	1.6	23.2	1860	0.0991
	1	1×240	48/2.52	18.5	1.7	55×0.20	1.7	25.9	2386.3	0.0754
	1	1×300	61/2.52	20.6	1.8	60×0.20	1.8	28.4	3000.1	0.0601
	1	1×400	61/2.94	23.3	2	60×0.20	1.9	32.2	3870	0.047
	1	1×500	60/3.29	26.6	2.2	60×0.20	2	35.6	4951	0.0366
	1	1×630	60/3.69	29.6	2.4	60×0.20	2.2	39.4	6204.5	0.0283
	2	2×1.5	1/1.38	1.38	0.7	20×0.20	1.8	9.8	122.1	12.1
	2	2×2.5	1/1.78	1.78	0.7	20×0.20	1.8	10.6	151.8	7.41
	2	2×4	1/2.25	2.25	0.7	20×0.20	1.8	11.6	193.9	4.61
	2	2×6	1/2.76	2.76	0.7	20×0.20	1.8	12.6	245.8	3.08
	2	2×10	7/1.35	4.05	0.7	30×0.20	1.8	15.2	352.1	1.83
	2	2×16	7/1.66	4.98	0.7	35×0.20	1.8	17.2	479.7	1.15
	2	2×25	7/2.14	6.42	0.9	40×0.20	1.8	20.6	733	0.727
	2	2×35	7/2.52	7.56	0.9	50×0.20	1.8	23	959.5	0.524
	2	2×50	10/2.52	5.7×13.5	1	40×0.20	1.8	19.6	1083.6	0.387
	2	2×70	14/2.52	7.0×15.6	1.1	45×0.20	1.8	22.6	1473.8	0.268
	2	2×95	19/2.52	8.3×18.0	1.1	55×0.20	1.9	25.4	1975.8	0.193
	2	2×120	24/2.52	8.9×20.8	1.2	60×0.20	2	27.2	2461.9	0.153
	2	2×150	30/2.52	10.0×23.1	1.4	60×0.20	2.2	30.6	3066.9	0.124
	2	2×185	37/2.52	11.1×25.7	1.6	60×0.20	2.3	33.8	3765.6	0.0991
	2	2×240	48/2.52	12.5×29.1	1.7	60×0.20	2.5	37.4	4833.1	0.0754
	2	2×300	61/2.52	15.0×32.2	1.8	60×0.20	2.6	43	6091.7	0.0601
	3	3×1.5	1/1.38	1.38	0.7	20×0.20	1.8	10.2	144.1	12.1
	3	3×2.5	1/1.78	1.78	0.7	20×0.20	1.8	11.1	182.9	7.41
	3	3×4	1/2.25	2.25	0.7	20×0.20	1.8	12.2	240	4.61
	3	3×6	1/2.76	2.76	0.7	20×0.20	1.8	13.3	311.6	3.08
	3	3×10	7/1.35	4.05	0.7	30×0.20	1.8	16.1	456.4	1.83
	3	3×16	7/1.66	4.98	0.7	35×0.20	1.8	18.2	630.8	1.15
	3	3×25	7/2.14	6.42	0.9	45×0.20	1.8	21.9	981.5	0.727
	3	3×35	7/2.52	7.56	0.9	50×0.20	1.8	24.5	1298	0.524
	3	3×50	10/2.52	7.0×11.5	1	50×0.20	1.8	23.2	1578.5	0.387
	3	3×70	14/2.52	8.0×13.7	1.1	55×0.20	1.9	25.9	2158	0.268
	3	3×95	19/2.52	9.5×15.8	1.1	60×0.20	2	29.3	2902.1	0.193
	3	3×120	24/2.52	10.8×18.6	1.2	60×0.20	2.1	32.7	3636.5	0.153
	3	3×150	30/2.52	12.5×20.5	1.4	60×0.20	2.3	37.5	4537.4	0.124
	3	3×185	37/2.52	14.3×23.3	1.6	60×0.20	2.4	42.3	5584.6	0.0991
	3	3×240	48/2.52	16.3×26.2	1.7	60×0.20	2.6	47.4	7178.8	0.0754
	3	3×300	61/2.52	18.0×29.8	1.8	60×0.20	2.7	51.6	9012.4	0.0601
	4	4×1.5	1/1.38	1.38	0.7	20×0.20	1.8	11	169.8	12.1
	4	4×2.5	1/1.78	1.78	0.7	20×0.20	1.8	11.9	221.2	7.41
	4	4×4	1/2.25	2.25	0.7	20×0.20	1.8	13.2	293.9	4.61
	4	4×6	1/2.76	2.76	0.7	20×0.20	1.8	14.4	385.7	3.08
	4	4×10	7/1.35	4.05	0.7	35×0.20	1.8	17.5	572.6	1.83
	4	4×16	7/1.66	4.98	0.7	40×0.20	1.8	19.9	800	1.15
	4	4×25	7/2.14	6.42	0.9	50×0.20	1.8	24	1254.7	0.727
	4	4×35	7/2.52	7.56	0.9	60×0.20	1.8	26.9	1667.3	0.524
	4	4×50	10/2.52	7.5×10.5	1	55×0.20	1.8	25.1	2058.2	0.387
	4	4×70	14/2.52	9.1×12.5	1.1	60×0.20	2	29.5	2848.2	0.268
	4	4×95	19/2.52	11.0×13.3	1.1	60×0.20	2.1	33.8	3838.2	0.193
	4	4×120	24/2.52	12.0×17.0	1.2	60×0.20	2.3	36.9	4817.3	0.153
	4	4×150	30/2.52	13.9×19.7	1.4	60×0.20	2.4	42.1	5987.1	0.124
	4	4×185	37/2.52	15.2×21.2	1.6	60×0.20	2.6	46.3	7375.8	0.0991
	4	4×240	48/2.52	17.3×24.3	1.7	60×0.20	2.8	51.7	9480.4	0.0754
	4	4×300	61/2.52	19.5×27.9	1.8	60×0.20	3	57.4	11951.3	0.0601
	5	5×1.5	1/1.38	1.38	0.7	20×0.20	1.8	11.8	197.6	12.1
5	5×2.5	1/1.78	1.78	0.7	20×0.20	1.8	12.8	260.3	7.41
5	5×4	1/2.25	2.25	0.7	20×0.20	1.8	14.2	350.8	4.61
5	5×6	1/2.76	2.76	0.7	20×0.20	1.8	15.5	463.3	3.08
5	5×10	7/1.35	4.05	0.7	40×0.20	1.8	19.1	695.7	1.83
5	5×16	7/1.66	4.98	0.7	45×0.20	1.8	21.8	977.7	1.15
5	5×25	7/2.14	6.42	0.9	55×0.20	1.8	26.3	1538.7	0.727
5	5×35	7/2.52	7.56	0.9	60×0.20	1.8	29.6	2052.9	0.524
5	5×50	10/2.52	4.8×14.2	1	60×0.20	1.9	27.4	2549.7	0.387
			8.4	1
5	5×70	14/2.52	5.7×16.8	1.1	60×0.20	2.1	31.7	3523.7	0.268
			10	1.1
5	5×95	19/2.52	6.7×19.6	1.1	60×0.20	2.2	35.5	4744	0.193
			11.6	1.1
5	5×120	24/2.52	7.9×21.9	1.2	60×0.20	2.4	40.2	5972.8	0.153
			13	1.2
5	5×150	30/2.52	8.5×24.6	1.4	60×0.20	2.6	44.4	7425.2	0.124
			14.6	1.4
5	5×185	37/2.52	9.4×27.2	1.6	60×0.20	2.8	49.2	9151.1	0.0991
			16.2	1.6
5	5×240	48/2.52	10.8×31.0	1.7	60×0.20	3	55.2	11768.5	0.0754
			18.5	1.7
5	5×300	61/2.52	12.2×34.4	1.8	60×0.20	3.2	61	14833.3	0.0601
			20.6	1.8
5	3×4+1×2.5	1/2.25	2.25	0.7	20×0.20	1.8	12.9	253.2	4.61
		1/1.78	1.78	0.7
5	3×4+2×2.5	1/2.25	2.25	0.7	20×0.20	1.8	13.7	268.8	4.61
		1/1.78	1.78	0.7
		1/1.78	1.78	0.7
4	3×6+1×4	1/2.76	2.76	0.7	20×0.20	1.8	14.1	326.9	3.08
		1/2.25	2.25	0.7
5	3×6+2×4	1/2.76	2.76	0.7	20×0.20	1.8	15	347	3.08
		1/2.25	2.25	0.7
		1/2.25	2.25	0.7
4	3×10+1×6	7/1.35	4.05	0.7	35×0.20	1.8	16.9	525.3	1.83
		7/1.04	3.12	0.7
5	3×10+2×6	7/1.35	4.05	0.7	35×0.20	1.8	18	602.8	1.83
		7/1.04	3.12	0.7
		7/1.04	3.12	0.7
4	3×16+1×10	7/1.66	4.98	0.7	40×0.20	1.8	19.3	744.3	1.15
		7/1.35	4.05	0.7
5	3×16+2×10	7/1.66	4.98	0.7	40×0.20	1.8	20.7	865.1	1.15
		7/1.35	4.05	0.7
		7/1.35	4.05	0.7
4	3×25+1×16	7/2.14	6.42	0.9	50×0.20	1.8	23	1142.9	0.727
		7/1.66	4.98	0.7
5	3×25+2×16	7/2.14	6.42	0.9	50×0.20	1.8	24.5	1314.5	0.727
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×35+1×16	7/2.52	7.56	0.9	55×0.20	1.8	25.2	1451.1	0.524
		7/1.66	4.98	0.7
5	3×35+2×16	7/2.52	7.56	0.9	55×0.20	1.8	26.4	1616.6	0.524
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×50+1×25	10/2.52	7.2×10.8	1	55×0.20	1.8	25.5	1839.9	0.387
		7/2.16	6	0.9
5	3×50+2×25	10/2.52	5.0×14.3	1	55×0.20	1.8	25.1	2077.1	0.387
		7/2.16	6	0.9
		7/2.16	6	0.9
4	3×70+1×35	14/2.52	9.0×13.0	1.1	60×0.20	1.9	30.3	2523	0.268
		7/2.52	7	0.9
5	3×70+2×35	14/2.52	6.0×16.8	1.1	60×0.20	2	28.9	2845	0.268
		7/2.52	7	0.9
		7/2.52	7	0.9
4	3×95+1×50	19/2.52	10.7×14.5	1.1	60×0.20	2.1	34.6	3428.7	0.193
		10/2.52	8.4	1
5	3×95+2×50	19/2.52	7.2×19.7	1.1	60×0.20	2.1	33	3871.9	0.193
		10/2.52	8.4	1
		10/2.52	7.1×11.5	1
4	3×120+1×70	24/2.52	11.5×17.3	1.2	60×0.20	2.2	37.1	4338.4	0.153
		14/2.52	10	1.1
5	3×120+2×70	24/2.52	8.0×22.1	1.2	60×0.20	2.3	37.1	4994.5	0.153
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×150+1×70	30/2.52	13.2×19.4	1.4	60×0.20	2.3	42.2	5231.4	0.124
		14/2.52	10	1.1
5	3×150+2×70	30/2.52	9.1×24.3	1.4	60×0.20	2.4	40.3	5867.5	0.124
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×185+1×95	37/2.52	15.0×22.3	1.6	60×0.20	2.5	47.6	6540.7	0.0991
		19/2.52	11.6	1.1
5	3×185+2×95	37/2.52	10.2×27.2	1.6	60×0.20	2.5	45.1	7383.7	0.0991
		19/2.52	11.6	1.1
		19/2.52	9.2×14.7	1.1
4	3×240+1×120	48/2.52	17.7×23.7	1.7	60×0.20	2.6	54.5	8370.8	0.0754
		24/2.52	13	1.2
5	3×240+2×120	48/2.52	11.5×29.2	1.7	60×0.20	2.7	50	9436.1	0.0754
		24/2.52	13	1.2
		24/2.52	9.9×16.4	1.2
4	3×300+1×150	61/2.52	19.2×28.3	1.8	60×0.20	2.8	58.9	10508	0.0601
		30/2.52	14.6	1.4
5	3×300+2×150	61/2.52	13.0×33.2	1.8	60×0.20	2.9	55.6	11860.4	0.0601
		30/2.52	14.6	1.4
		30/2.52	10.6×17.9	1.4
5	4×4+1×2.5	1/2.25	2.25	0.7	20×0.20	1.8	13.9	309.8	4.61
		1/1.78	1.78	0.7
5	4×6+1×4	1/2.76	2.76	0.7	20×0.20	1.8	15.3	404.1	3.08
		1/2.25	2.25	0.7
5	4×10+1×6	7/1.35	4.05	0.7	35×0.20	1.8	18.5	648.8	1.83
		7/1.04	3.12	0.7
5	4×16+1×10	7/1.66	4.98	0.7	45×0.20	1.8	21.2	921.3	1.15
		7/1.35	4.05	0.7
5	4×25+1×16	7/2.14	6.42	0.9	55×0.20	1.8	25.4	1428.5	0.727
		7/1.66	4.98	0.7
5	4×35+1×16	7/2.52	7.56	0.9	60×0.20	1.8	28	1836.6	0.524
		7/1.66	4.98	0.7
5	4×50+1×25	10/2.52	5.5×13.4	1	55×0.20	1.9	26.3	2320.3	0.387
		7/2.16	6	0.9
5	4×70+1×35	14/2.52	6.7×15.8	1.1	60×0.20	2	30.3	3179.6	0.268
		7/2.52	7	0.9
5	4×95+1×50	19/2.52	7.7×18.3	1.1	60×0.20	2.2	34.2	4316.2	0.193
		10/2.52	8.4	1
5	4×120+1×70	24/2.52	9.5×20.8	1.2	60×0.20	2.3	40.1	5494.4	0.153
		14/2.52	10	1.1
5	4×150+1×70	30/2.52	10.0×22.9	1.4	60×0.20	2.5	42.3	6647.9	0.124
		14/2.52	10	1.1
5	4×185+1×95	37/2.52	10.8×25.6	1.6	60×0.20	2.6	46.7	8254.5	0.0991
		19/2.52	11.6	1.1
5	4×240+1×120	48/2.52	12.6×28.9	1.7	60×0.20	2.9	52.6	10616.3	0.0754
		24/2.52	13	1.2
5	4×300+1×150	61/2.52	13.8×32.2	1.8	60×0.20	3.1	57.6	13352.6	0.0601
