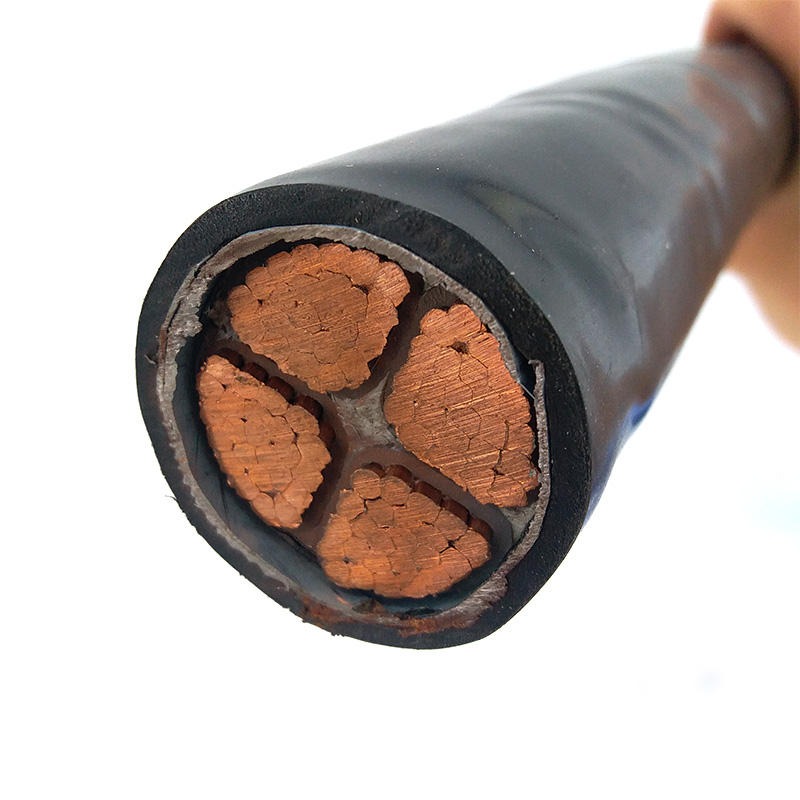

0.6/1kv 4 Core CU/XLPE/SWA/PVC Power Cable
Description
1. Standard of XLPE Cable:
According to GB12706( Equal to IEC60502). Also can make the production according to your requirement.
2. Characters of XLPE Cable:
a.Max Long-time operating temperature of XLPE insulated cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 250°C,Not more than5 Sec.
d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
3. Advantage:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure,Convenient to use
d. Reduce costs
4. Specification And Description:
| Model | Name | Application site | Section area | Cores | Rate voltag |
|---|---|---|---|---|---|
| VV | Copper Conductor PVC insulated PVC sheathed power cable | Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed . | 10 16 25 35 50 70 95 120 150 185 240 300 400 | 1 2 3 4 5 3+1 4+1 3+2 | 6/10kv 8.7/15kv 12/20kv 18/30kv 21/35kv |
| VLV | Aluminum Conductor PVC insulated PVC sheathed power cable | ||||
| YJV | Copper Conductor XLPE insulated PVC sheathed power cable | ||||
| YJLV | Aluminum Conductor XLPE insulated PVC sheathed power cable | ||||
| YJY | Copper Conductor XLPE insulated PE sheathed power cable | ||||
| YJLY | Aluminum Conductor XLPE insulated PE sheathed power cable | ||||
| VV22 | Copper Conductor PVC insulated steel tape armored PVC sheathed power cable | Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull. | |||
| VLV22 | Aluminum Conductor PVC insulated steel tape armored PVC sheathed power cable | ||||
| YJV22 | Copper Conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||
| YJLV22 | Aluminum Conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||
| YJV23 | Copper Conductor XLPE insulated steel tape armored PE sheathed power cable | ||||
| YJLV23 | Aluminum Conductor XLPE insulated steel tape armored PE sheathed power cable | ||||
| VV32 | Copper Conductor PVC insulated steel wire armored PVC sheathed power cable | Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension. | |||
| VLV32 | Aluminum Conductor PVC insulated steel wire armored PVC sheathed power cable | ||||
| YJV32 | Copper Conductor XLPE insulated steel wire armored PVC sheathed power cable | ||||
| YJLV32 | Aluminum Conductor XLPE insulated steel wire armored PVC sheathed power cable | ||||
| YJV33 | Copper Conductor XLPE insulated steel wire armored PE sheathed power cable | ||||
| YJLV33 | Aluminum Conductor XLPE insulated steel wire armored PE sheathed power cable |
——Our Feature——
1.Imported equipment with experienced technical team
We have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2.Complete certification system
We have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3.Perfect Production system
Our products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4.Perfect Sales service system
We can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service.
